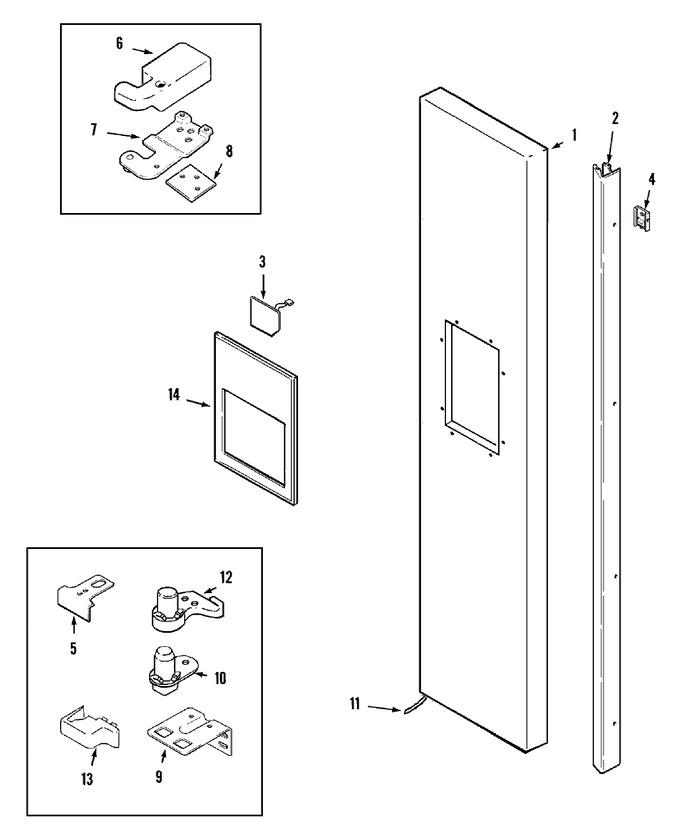

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	61006115		Panel, Frz. Door (stnls)	18	Appelez-nous	-
1	61005756		Panel, Frz. Door (stnls)	10	Appelez-nous	-
2	61004258		Handle, Door (stnls)	10	Appelez-nous	-
2	61004345		Screw (no.8-18 Type Ab)	10	Appelez-nous	-
3	61005834		Board, Ftn. Switch	10	Appelez-nous	-
3	61003422		Screw	10	Appelez-nous	-
4	61004179		Base, Handle	10			$ 5.02
4	W10856122		Screw   (Replaces: 61002180)	10			$ 6.98
5	61004120		Stop, Door	10	Appelez-nous	-
5	W10856122		Screw   (Replaces: 61002180)	10			$ 6.98
6	WP8281196		Screw, Cover   (Replaces: 61004641)	10		Immediately	$ 6.47
6	12001982		Cover, Upper Hinge (slv)   (Replaces: 61004298)	10			$ 56.05
7	61004194		Hinge, Upper	10	Appelez-nous	-
7	WP3-24838-048		Screw   (Replaces: 61004763)	10			$ 7.00
8	61001922		Shim, Upper Hinge	10			$ 0.71
9	61004713		Hinge, Lower (blk)	10	Appelez-nous	-
9	3400112		Screw   (Replaces: 61003128)	10			$ 62.96
10	61003174		Pin, Lower Hinge	10			$ 6.22
11	61004569		Tubing, Fountain	10	Appelez-nous	-
11	WP2300868		Union, Reducing (5/16``-5/16``)   (Replaces: 61005808)	10		Immediately	$ 26.15
12	61005726		Closer, Door (w/cup)	10			$ 27.14
12	W10856122		Screw   (Replaces: 61002180)	10			$ 6.98
13	61004178		Cover, Lower Hinge (blk)	10	Appelez-nous	-
14	61005832		Escutcheon (blk)	10	Appelez-nous	-
14	489392		Screw   (Replaces: 415013-35)	10			$ 12.02
