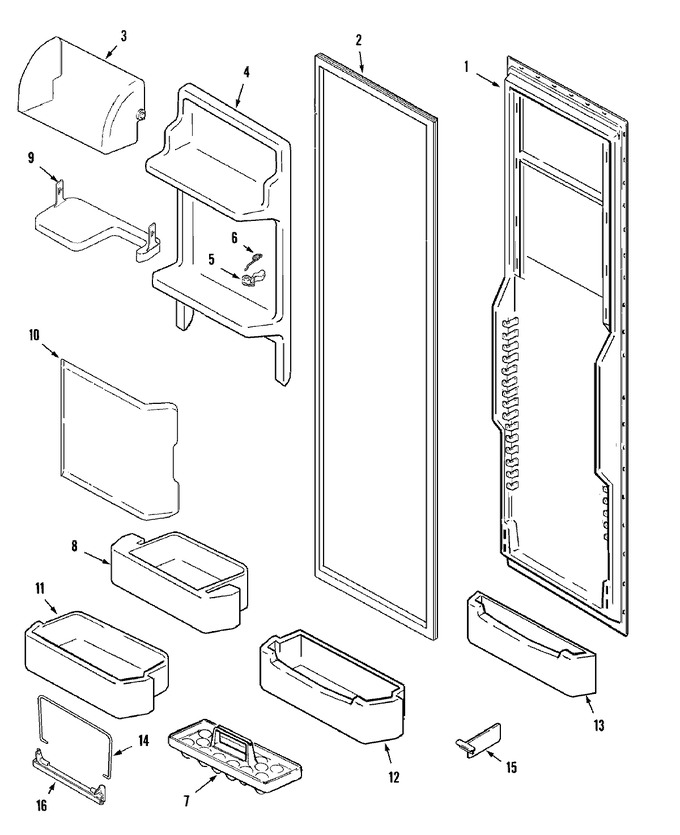

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	61005417		Liner, F.f. Door	10	Appelez-nous	-
1	61005388		Screw	10			$ 11.43
1	61004716		Insert, Liner Support (sides)	10	Appelez-nous	-
1	61004123		Insert, Liner Support(top/btm)	10	Appelez-nous	-
2	WP61005944		Seal, F.f. Door (blk)   (Replaces: 61003904)	10			$ 288.10
3	61003971		Door, Dairy	10			$ 44.62
4	61004718		Frame Assy., Chill Compt.	10	Appelez-nous	-
5	61004685		Cam, Latch	10	Appelez-nous	-
5	61002584		Screw	10	Appelez-nous	-
6	61003974		Spring, Latch	10	Appelez-nous	-
7	60066-1		Tray, Egg	10	Appelez-nous	-
8	61003975		Drawer, Chill Compt.	10	Appelez-nous	-
9	61003977		Shelf, Chill Compt.	10	Appelez-nous	-
10	61005910		Door Assy., Chill Compt.	10	Appelez-nous	-
11	61005209		Shelf, Pick-off	10	Appelez-nous	-
12	61004351		Shelf, Pick-off	10	Appelez-nous	-
13	61004350		Front, Pick-off	10	Appelez-nous	-
14	61004926		Retainer, Wire	10	Appelez-nous	-
15	61002274		Organizer, Shelf	10	Appelez-nous	-
16	61005106		Retainer, Bottle	10	Appelez-nous	-
