SELECT A DIAGRAM

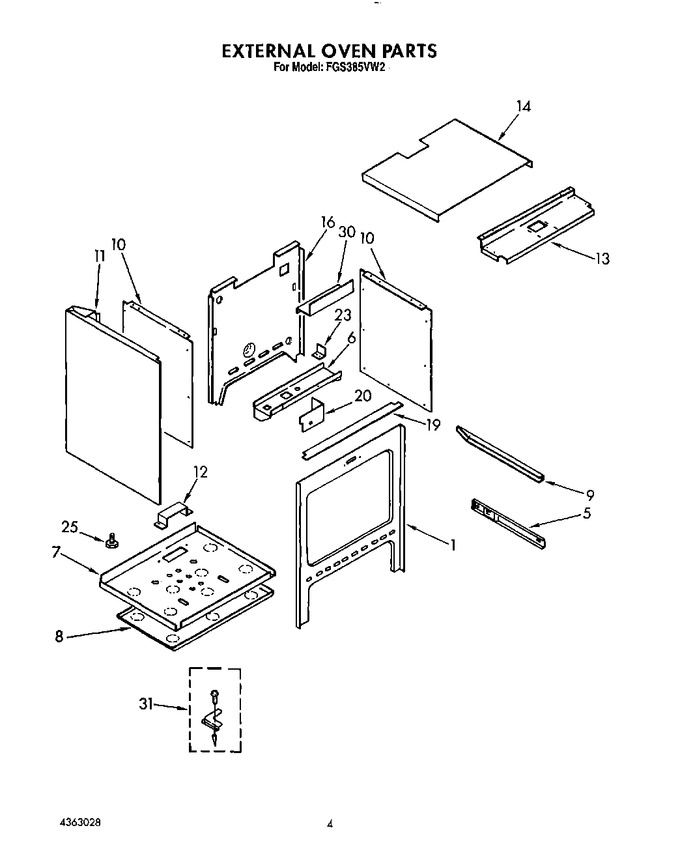

02 - Internal Oven


03 - External Oven


04 - Manifold


05 - Oven Electrical


06 - Oven Door And Drawer


07 - Backguard, Lit/optional


08 - Cooktop


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP965173		Screw (10)   (Replaces: 786223)			Immediately	$ 9.65
1	4362557		Frame, Front Not Serviceable		Appelez-nous	-
5	4315769		Track, Storage (left Side)		Appelez-nous	-
5	4315768		Track, Storage (right Side)		Appelez-nous	-
5	WP308685		Track, Storage (drawer)   (Replaces: 4157111)			Immediately	$ 7.08
6	786753		Nut		Appelez-nous	-
6	WP486754		Screw   (Replaces: 4320376)				$ 6.75
6	WP488130		Nut (4)   (Replaces: 786272)				$ 6.27
6	WP965173		Screw (2)   (Replaces: 4315342)			Immediately	$ 9.65
6	4315767		Shelf, Gas Valve		Appelez-nous	-
7	4315770		Retainer, Bottom Insulation		Appelez-nous	-
7	WP965173		Screw, 8 X 3/8 (9)   (Replaces: 4315342)			Immediately	$ 9.65
8	786364		Heat Shield,		Appelez-nous	-
8	WP308685		Storage Drawer   (Replaces: 4157117)			Immediately	$ 7.08
9	4362935		Brace, Bottom (l.h.)		Appelez-nous	-
9	4362923		Brace, Bottom (r.h.)		Appelez-nous	-
10	4362922		Retainer, Insulation (2)		Appelez-nous	-
11	4362897		Panel, End (2) (almond)		Appelez-nous	-
11	4362888		Panel, End (2) (white)		Appelez-nous	-
12	4320890		Retainer, Ignitor		Appelez-nous	-
13	4362546		Retainer, Top Front Insulation		Appelez-nous	-
14	4320960		Retainer, Top Back		Appelez-nous	-
16	4362820		Bushing, Snap		Appelez-nous	-
16	WP965173		Screw, 8 X 3/8 (2)   (Replaces: 786745)			Immediately	$ 9.65
16	4315785		Panel, Rear		Appelez-nous	-
16	WP486754		Screw, 6-32 X 3/8   (Replaces: 786749)				$ 6.75
16	786748		Nut, 6-32		Appelez-nous	-
16	WP488130		Nut (4)   (Replaces: 786272)				$ 6.27
19	4362577		Frame, Filler Front		Appelez-nous	-
20	4315776		Plate, Cover		Appelez-nous	-
23	WP488130		Nut, Hex. ``kep (4)   (Replaces: 786272)				$ 6.27
23	WP965173		Screw (2)   (Replaces: 4315342)			Immediately	$ 9.65
23	4315678		Bracket, Gas Valve (2)		Appelez-nous	-
25	4315777		Leg, Leveling (4)		Appelez-nous	-
30	4315779		Cover, Electrical		Appelez-nous	-
31	4315756		Anti Tip Kit		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
