02 - Internal Oven
03 - External Oven
04 - Manifold
05 - Oven Electrical
06 - Oven Door And Drawer
07 - Backguard, Lit/optional
08 - Cooktop
SELECT A DIAGRAM
New Model Search:

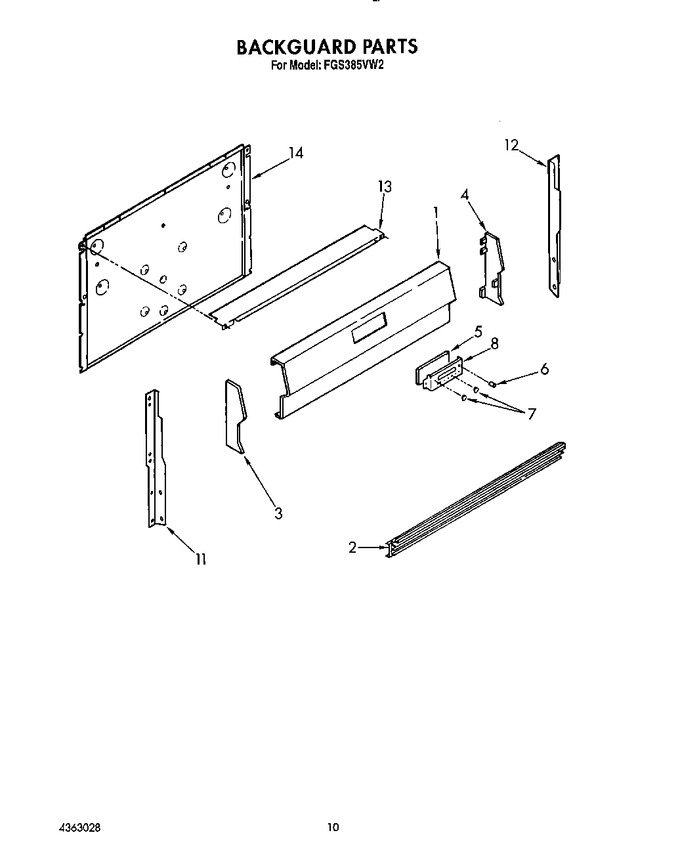

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4320734 | Panel, Backguard |
|
- | |||||
| 2 | 4320800 | Trim |
|
- | |||||
| 3 | 4320744 | End Cap L.h. |
|
- | |||||
| 4 | 4320745 | End Cap R.h. |
|
- | |||||
| 5 | 4320735 | Erc Control |
|
- | |||||
| 6 | 4320916 | Erc Knob |
|
- | |||||
| 7 | 4320917 | Button Set (8) |
|
- | |||||
| 8 | 4320852 | Lens |
|
- | |||||
| 11 | 4362924 | Support L.h. |
|
- | |||||
| 12 | 4362925 | Support, R.h. |
|
- | |||||
| 13 | 4320958 | Shield, Heat |
|
- | |||||
| 14 | 4315797 | Insulation, Backguard |
|
- | |||||
| 14 | 4362559 | Cover Rear |
|
- | |||||
| LIT4320356 | Guide, Use & Care |
|
- | ||||||
| LIT4363028 | List, Repair Parts |
|
- | ||||||
| LIT4320355 | Instructions, Installation |
|
- |
