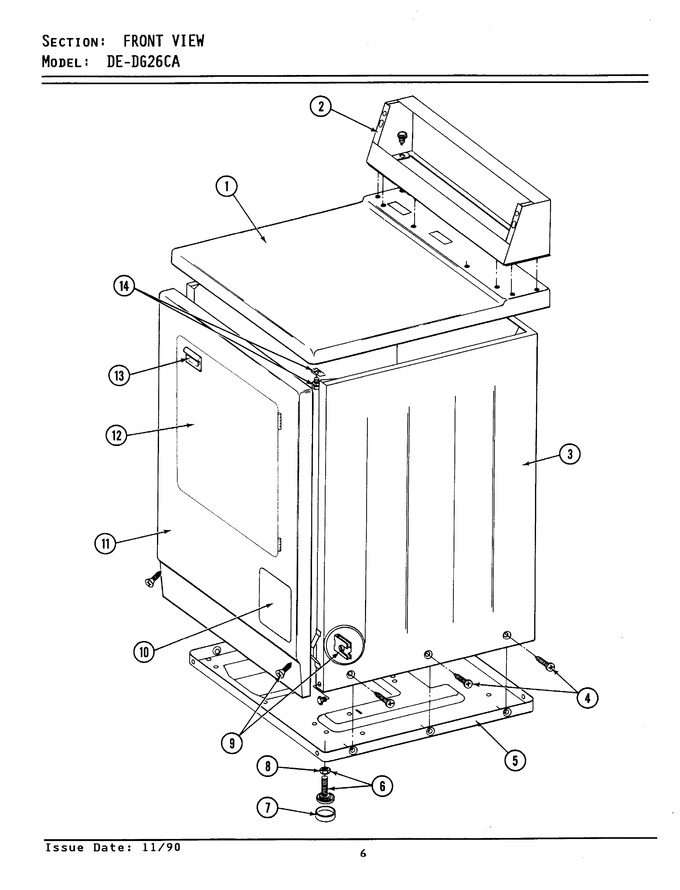

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | 307104 | Top Cover Assy. (wht) |
|
- | |||||
| 001 | NLA | (alm) |
|
- | |||||
| 002 | WP90767 | Screw (Replaces: 212276) |
|
Immediately | $ 7.04 | ||||
| 002 | NLA | Console (wht) |
|
- | |||||
| 003 | NLA | Cabinet (wht) |
|
- | |||||
| 003 | Y310632 | Screw |
|
- | |||||
| 004 | 213007 | Screw, Cabinet |
|
$ 10.99 | |||||
| 005 | Y303361 | Base Assy. |
|
- | |||||
| 006 | WP233550 | Adjustable Leg & Nut (Replaces: Y305086) |
|
$ 7.16 | |||||
| 007 | Y314137 | Foot, Rubber |
|
$ 14.08 | |||||
| 008 | WP62739 | Nut (Replaces: Y052740) |
|
$ 6.85 | |||||
| 009 | 204439 | Screw & Fstner Assy (ft. Pnl) |
|
$ 8.80 | |||||
| 010 | NLA | Part Not Used |
|
- | |||||
| 011 | NLA | Panel, Front (wht) |
|
- | |||||
| 012 | 308061 | Door Assy. Complete (wht) |
|
- | |||||
| 012 | NLA | (alm) |
|
- | |||||
| 013 | 314946 | Handle (wht) |
|
- | |||||
| 013 | 314972 | (alm) |
|
- | |||||
| 013 | NLA | (h. Wheat) |
|
- | |||||
| 014 | 204445 | Screw & Fastener Asy. |
|
- |
