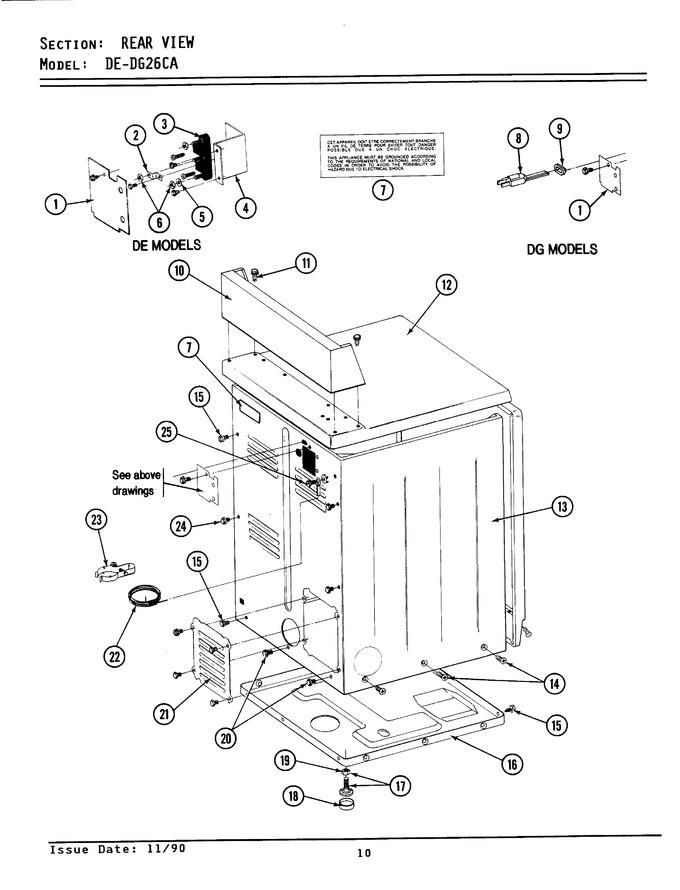

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | Y313561 | Screw----na |
|
$ 5.27 | |||||
| 001 | Y312905 | Cover, Terminal |
|
- | |||||
| 002 | WP489483 | Screw, No.10-32 X 1/2 Inch (Replaces: Y311423) |
|
$ 9.78 | |||||
| 002 | Y312184 | Strap, Ground |
|
- | |||||
| 003 | 400008 | Block, Terminal |
|
$ 29.20 | |||||
| 003 | W11164114 | Screw, No.10-24 X 3/4 Inch-----o (Replaces: Y312209) |
|
$ 3.76 | |||||
| 004 | Y313561 | Screw----na |
|
$ 5.27 | |||||
| 004 | Y310632 | Screw |
|
- | |||||
| 004 | Y312904 | Bracket, Terminal Block |
|
- | |||||
| 005 | Y311270 | Washer, Terminal Block |
|
$ 8.75 | |||||
| 006 | WP112432 | Nut, Terminal Block (Replaces: 311484) |
|
$ 7.16 | |||||
| 007 | 214519 | Part Not Used |
|
- | |||||
| 008 | 305168 | Cord, Power (canada) |
|
- | |||||
| 009 | 211881 | Part Not Used |
|
- | |||||
| 010 | NLA | Console (wht) |
|
- | |||||
| 011 | WP90767 | Screw (Replaces: 212276) |
|
Immediately | $ 7.04 | ||||
| 012 | 307105 | Top Cover Assy. (wht) |
|
- | |||||
| 012 | NLA | (alm) |
|
- | |||||
| 013 | NLA | Cabinet (wht) |
|
- | |||||
| 014 | 213007 | Screw, Cabinet |
|
$ 10.99 | |||||
| 015 | Y313561 | Screw----na |
|
$ 5.27 | |||||
| 016 | Y303361 | Base Assy. |
|
- | |||||
| 017 | WP233550 | Adjustable Leg & Nut (Replaces: Y305086) |
|
$ 7.16 | |||||
| 018 | Y314137 | Foot, Rubber |
|
$ 14.08 | |||||
| 019 | WP62739 | Nut (Replaces: Y052740) |
|
$ 6.85 | |||||
| 020 | Y310632 | Screw |
|
- | |||||
| 021 | WP90767 | Screw (Replaces: 211294) |
|
Immediately | $ 7.04 | ||||
| 021 | Y312951 | Cover, Access |
|
- | |||||
| 021 | WP90767 | Screw (Replaces: Y313559) |
|
Immediately | $ 7.04 | ||||
| 022 | 311155 | Ground Wire |
|
$ 8.77 | |||||
| 023 | 301548 | Clamp, Ground (w/screw) |
|
- | |||||
| 023 | NLA | Screw |
|
- | |||||
| 024 | Y310632 | Screw |
|
- | |||||
| 025 | NLA | Screw & Washer Assy. |
|
- |
