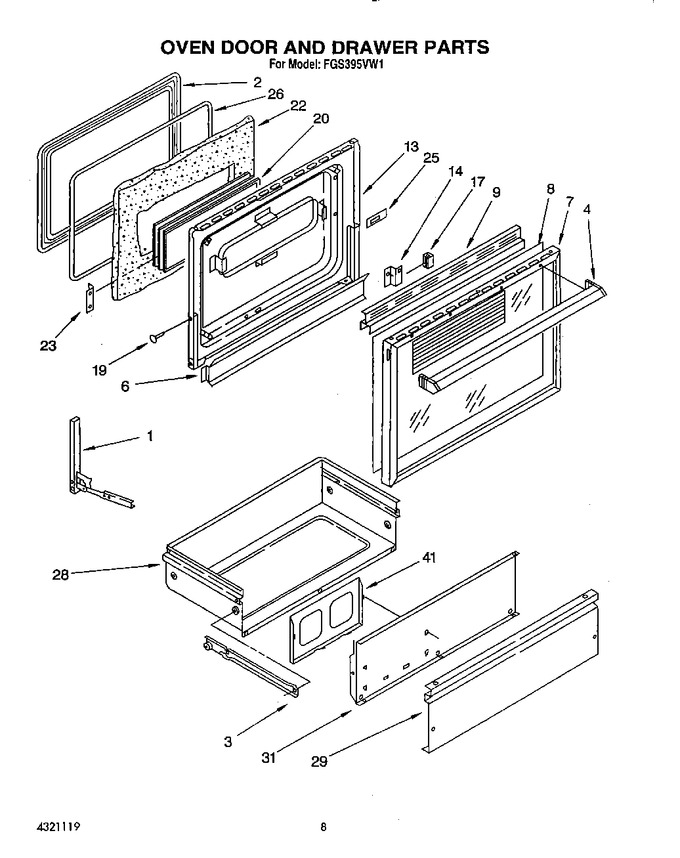

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	786374		Hinge, Oven Door (r.h.)		Appelez-nous	-
1	786739		Hinge, Oven Door (l.h.)		Appelez-nous	-
2	WP965173		Screw, 8 X 3/8 (11)   (Replaces: 786745)			Immediately	$ 9.65
2	4320984		Liner, Oven Door		Appelez-nous	-
2	786755		Screw, 8-32 X 5/8 (4)		Appelez-nous	-
2	WP488130		Nut (4)   (Replaces: 786272)				$ 6.27
2	WP965173		Screw, 8a X 3/8 (6)   (Replaces: 786756)			Immediately	$ 9.65
3	4320309		Runner (r.h.)		Appelez-nous	-
3	4320308		Runner (l.h.)		Appelez-nous	-
4	4320802		Handle		Appelez-nous	-
6	4320304		Baffle, Heat		Appelez-nous	-
7	4320957		Frame		Appelez-nous	-
8	4320971		Panel, Black Glass		Appelez-nous	-
9	4320849		Trim, Top Door		Appelez-nous	-
13	4320875		Retainer, Insulation		Appelez-nous	-
14	786425		Bracket, Glass Support (4)		Appelez-nous	-
17	417237		Bumper, Window (2)		Appelez-nous	-
19	786428		Pin, Hinge (2)		Appelez-nous	-
20	786429		Window Assembly		Appelez-nous	-
22	4320301		Insulation, Door		Appelez-nous	-
23	4179236		Retainer, Window (4)		Appelez-nous	-
25	786671		Plate, Latch (2)		Appelez-nous	-
26	4320302		Gasket Assembly		Appelez-nous	-
28	4320306		Wrapper, Storage Drawer		Appelez-nous	-
29	786522		Panel, Drawer (white)		Appelez-nous	-
29	4314976		Panel, Drawer (black)		Appelez-nous	-
29	786521		Panel, Drawer (almond)				$ 45.18
31	4320307		Liner, Door Panel		Appelez-nous	-
41	786807		Rack, Literature		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
