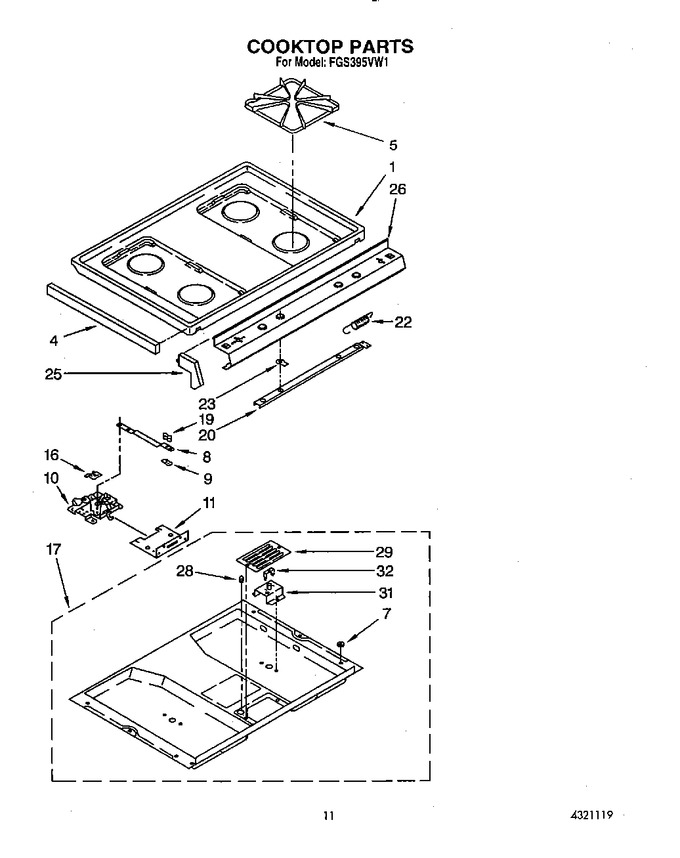

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4320859		Top, Main (almond)		Appelez-nous	-
1	4320858		Top, Main (white)		Appelez-nous	-
2	4320921		Bowl, Chrome		Appelez-nous	-
4	786325		Switch, Rocker		Appelez-nous	-
5	4320569		Grate, Top Burner (4)		Appelez-nous	-
7	786342		Spacer, Nylon (4)		Appelez-nous	-
8	786376		Handle, Latch		Appelez-nous	-
10	786303		Latch Assembly		Appelez-nous	-
10	WP965173		Screw, 8 X 3/8 (4)   (Replaces: 4315342)			Immediately	$ 9.65
11	4315774		Bracket, Latch Mounting		Appelez-nous	-
16	786752		Screw, 4-40 (2)		Appelez-nous	-
16	786381		Bracket, Switch		Appelez-nous	-
17	4320886		Burner Box		Appelez-nous	-
19	4320836		Knob, Latch Handle		Appelez-nous	-
25	4315009		End Cap (right Side)		Appelez-nous	-
25	4315008		End Cap (left Side)		Appelez-nous	-
26	4320806		Panel, Control		Appelez-nous	-
28	786309		Spud, Orfice		Appelez-nous	-
29	4315785		Plate, Cover		Appelez-nous	-
31	786684		Bracket, Top (2)		Appelez-nous	-
31	WP965173		Screw, 8 X 3/8 (6)   (Replaces: 786745)			Immediately	$ 9.65
32	786754		Bracket, Electrode (2)		Appelez-nous	-
