SELECT A DIAGRAM

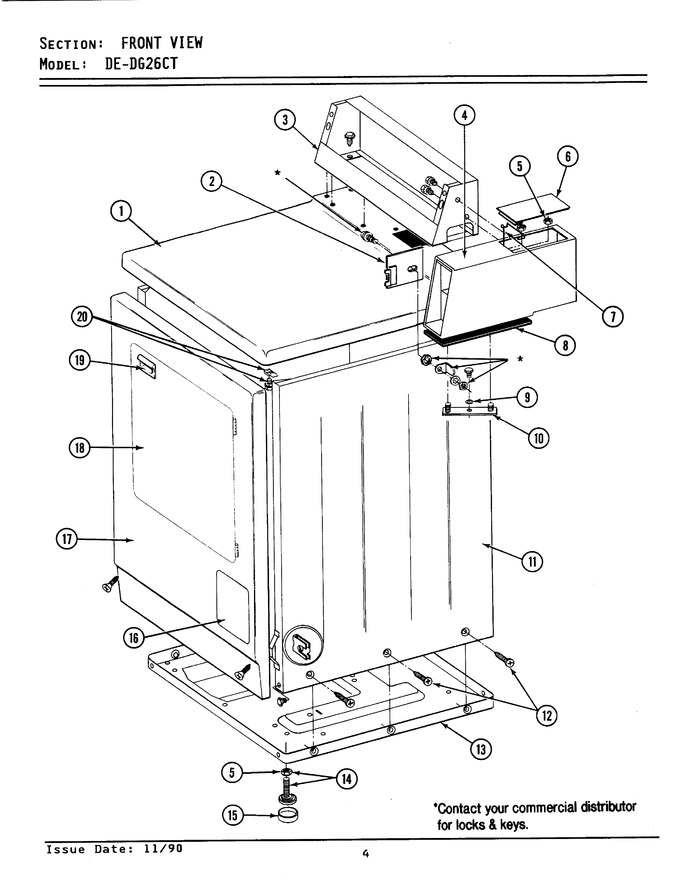

01 - Front View - Ct Models


02 - Rear View - Cd/ct Models


03 - Control Panel-ct Models


04 - Control Center - Ct Models


05 - Control Center Components - Ct Models


06 - Front Panel & Door Assembly


07 - Lint Screen, Tumbler (front & Back)


08 - Inlet Duct & Heater Assembly


09 - Motor, Blower & Base Frame


10 - Thermostats


11 - Installation Accessories


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	307105		(wht)		Appelez-nous	-
001	NLA		Top Cover Assy Alm		Appelez-nous	-
002	NLA		Access Door (wht)		Appelez-nous	-
003	NLA		Control Cover (wht)		Appelez-nous	-
003	WP90767		Screw   (Replaces: 212276)			Immediately	$ 7.04
004	NLA		Outer Case (wht)		Appelez-nous	-
005	WP62739		Nut   (Replaces: Y052740)				$ 6.85
006	NLA		Access Door (wht)		Appelez-nous	-
007	214878		Latch, Access Door		Appelez-nous	-
008	214660		Gasket, Meter Case		Appelez-nous	-
009	910309		Washer		Appelez-nous	-
010	NLA		Mtg. Strap----na		Appelez-nous	-
011	Y310632		Screw		Appelez-nous	-
011	NLA		Cabinet (wht)		Appelez-nous	-
012	213007		Screw, Cabinet				$ 10.99
013	Y303361		Base Assy.		Appelez-nous	-
014	WP233550		Adjustable Leg & Nut   (Replaces: Y305086)				$ 7.16
015	Y314137		Foot, Rubber				$ 14.08
016	NLA		Part Not Used		Appelez-nous	-
017	NLA		Panel, Front (wht)		Appelez-nous	-
018	NLA		(alm)		Appelez-nous	-
018	308061		Door Assy. Complete (wht)		Appelez-nous	-
019	314972		(alm)		Appelez-nous	-
019	NLA		(h. Wheat)		Appelez-nous	-
019	314946		Handle (wht)		Appelez-nous	-
020	204445		Screw & Fastener Asy.		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
