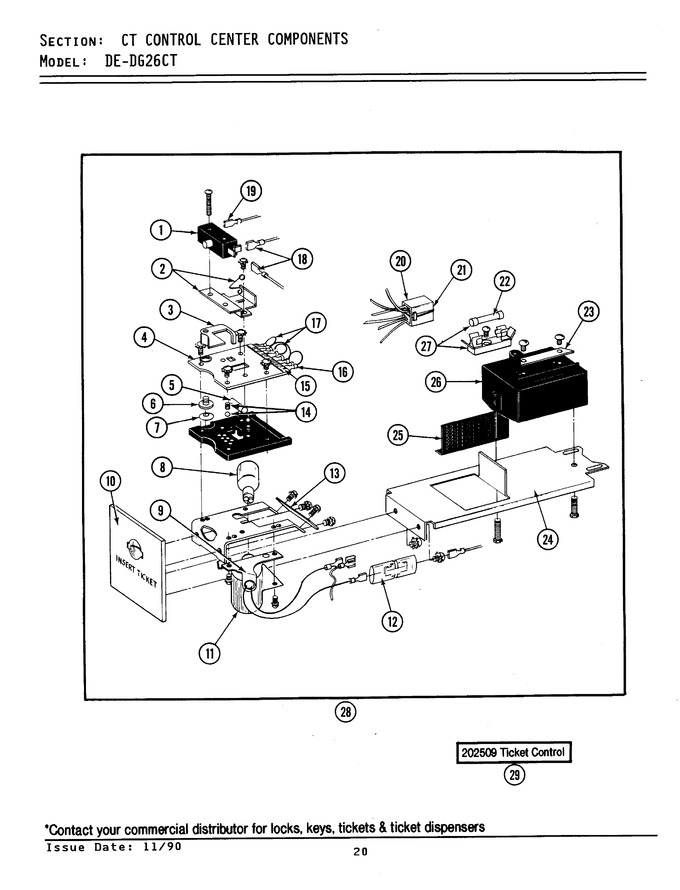

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	204882		Switch, Ticket Control		Appelez-nous	-
001	NLA		Screw		Appelez-nous	-
002	204881		Cam Plate Assembly		Appelez-nous	-
002	NLA		Sems Screw (no.4-40 X 1/2 Inc)		Appelez-nous	-
003	214218		Switch Lever				$ 80.43
004	212452		Circuit Board		Appelez-nous	-
004	NLA		Sems Screw (no.4-40 X 1/2 Inc)		Appelez-nous	-
005	214275		Roller, Cam		Appelez-nous	-
006	214220		Adjustment Thumb Wheel		Appelez-nous	-
007	NLA		Spring Washer		Appelez-nous	-
008	202479		Lamp, Ticket Control		Appelez-nous	-
009	NLA		Lamp Socket W/bracket		Appelez-nous	-
010	WP488234		Screw, No.8-32 X 1/4 Inch   (Replaces: 212519)				$ 6.07
010	NLA		Front Plate, Ticket Control		Appelez-nous	-
011	212533		Shield, Heat Lamp				$ 11.78
011	NLA		Screw, Shield		Appelez-nous	-
012	Y201110		Wire Connector		Appelez-nous	-
013	NLA		Screw, Shield		Appelez-nous	-
014	203140		Contact Ball Kit			Immediately	$ 25.88
015	NLA		Overlay, Circuit Board		Appelez-nous	-
016	Y311550		Spade (miniature)		Appelez-nous	-
017	NLA		Jumper Wire (black)		Appelez-nous	-
018	NLA		Spade Connector		Appelez-nous	-
019	WP248562		Wire Connector   (Replaces: 211737)				$ 6.95
020	NLA		Harness, Ticket Control		Appelez-nous	-
021	NLA		Pin, Plug		Appelez-nous	-
021	213074		Pin Receptacle, Plug		Appelez-nous	-
022	WP22001555		Fuse   (Replaces: 202713)			Immediately	$ 27.33
023	311613		Screw - Circuit Board Cover		Appelez-nous	-
023	311612		Cover, Circuit Board		Appelez-nous	-
024	WP90767		Screw   (Replaces: 211294)			Immediately	$ 7.04
024	NLA		Bracket, Ticket Assembly		Appelez-nous	-
025	NLA		Shield		Appelez-nous	-
026	202477		Electronic Control		Appelez-nous	-
027	NLA		Fuse Block W/fuse		Appelez-nous	-
028	NLA		Ticket Receiver Assembly		Appelez-nous	-
029	202509		Ticket Control		Appelez-nous	-
