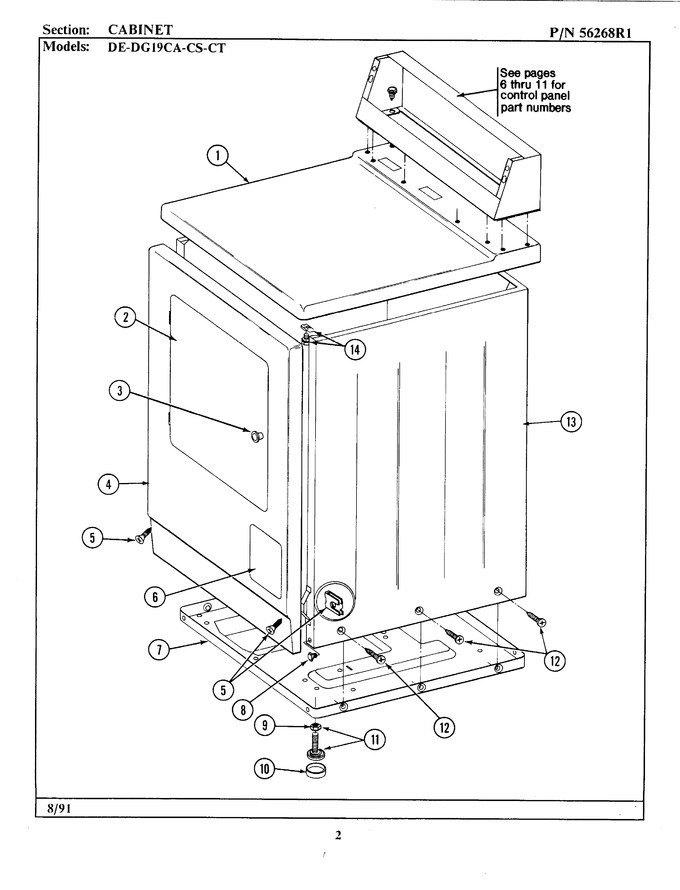

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | NLA | (alm) | 00 |
|
- | ||||
| 001 | Y305191 | Top Cover (wht) | 00 |
|
- | ||||
| 002 | Y313908 | Door Panel (wht) | 00 |
|
- | ||||
| 002 | NLA | (alm) | 00 |
|
- | ||||
| 002 | Y304579 | Door (wht) | 00 |
|
- | ||||
| 003 | NLA | Knob & Screw | 00 |
|
- | ||||
| 004 | NLA | Front Panel (wht) | 00 |
|
- | ||||
| 005 | 204439 | Screw & Fstner Assy (ft. Pnl) | 00 |
|
$ 8.80 | ||||
| 006 | NLA | Access Door (wht) | 00 |
|
- | ||||
| 007 | Y303361 | Base Assy. | 00 |
|
- | ||||
| 008 | Y310632 | Screw | 00 |
|
- | ||||
| 009 | WP62739 | Nut (Replaces: Y052740) | 00 |
|
$ 6.85 | ||||
| 010 | Y314137 | Foot, Rubber | 00 |
|
$ 14.08 | ||||
| 011 | WP233550 | Adjustable Leg & Nut (Replaces: Y305086) | 00 |
|
$ 7.16 | ||||
| 012 | 213007 | Screw, Cabinet | 00 |
|
$ 10.99 | ||||
| 013 | NLA | Cabinet (wht) | 00 |
|
- | ||||
| 014 | 204445 | Screw & Fastener Assy. | 00 |
|
- |
