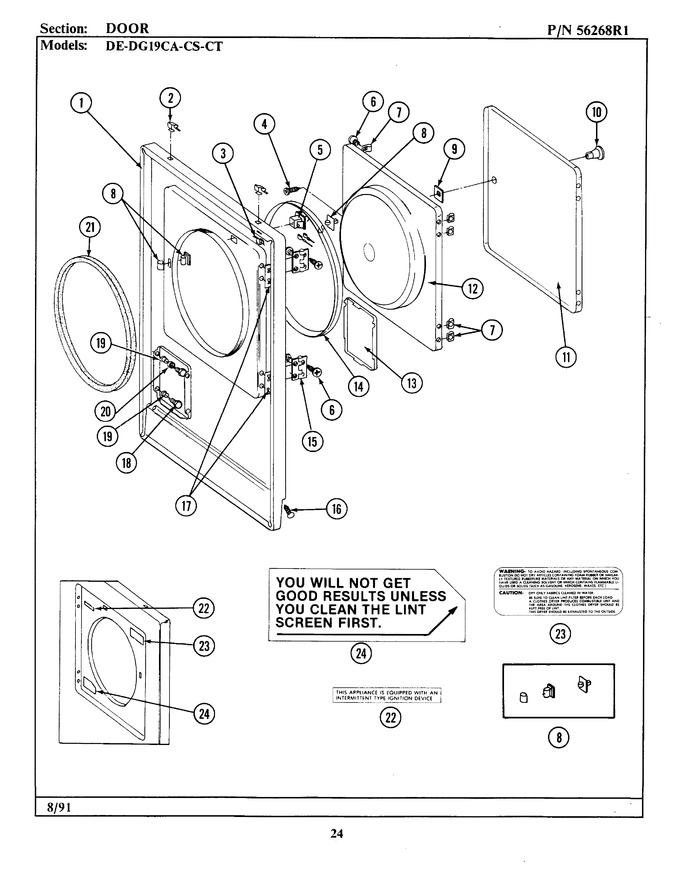

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	NLA		Front Panel (wht)	00	Appelez-nous	-
002	WP22001650		Fastener, Panel   (Replaces: 212982)	00		Immediately	$ 7.34
003	Y310376		Clip, Wire Harness	00	Appelez-nous	-
004	NLA		Screw, Door Knob	00	Appelez-nous	-
005	W10169313		Door Switch   (Replaces: Y304576)	00		Immediately	$ 29.18
005	W10169313		Switch, Door   (Replaces: Y305754)	01		Immediately	$ 29.18
006	Y314062		Screw	00			$ 12.03
007	Y313910		Clip, Door Liner (outer Pnl)	00	Appelez-nous	-
008	306436		Door Latch Kit--w	00		Immediately	$ 10.17
009	Y313911		Door Strike Retainer	00			$ 4.83
010	NLA		Knob & Screw	00	Appelez-nous	-
011	NLA		(alm)	00	Appelez-nous	-
011	Y306668		Door (wht)	00	Appelez-nous	-
012	NLA		Inner Door W/knob	00	Appelez-nous	-
013	NLA		Access Door (wht)	00	Appelez-nous	-
014	314077		Door Seal	00	Appelez-nous	-
015	Y304577		Door Hinge	00	Appelez-nous	-
016	204439		Screw & Fstner Assy (ft. Pnl)	00			$ 8.80
017	Y313907		Twin Fastener	00	Appelez-nous	-
018	212949		Screw	00	Appelez-nous	-
019	NLA		Bushing, Access Stud	00	Appelez-nous	-
020	312369		Sleeve-access Panel Stud	00	Appelez-nous	-
021	314286		Seal, Front Panel	00			$ 90.56
022	NLA		Gas Ignition Label	00	Appelez-nous	-
023	Y313927		Instruction Label	00	Appelez-nous	-
024	Y313340		Label, Lint Screen Instr.	00	Appelez-nous	-
