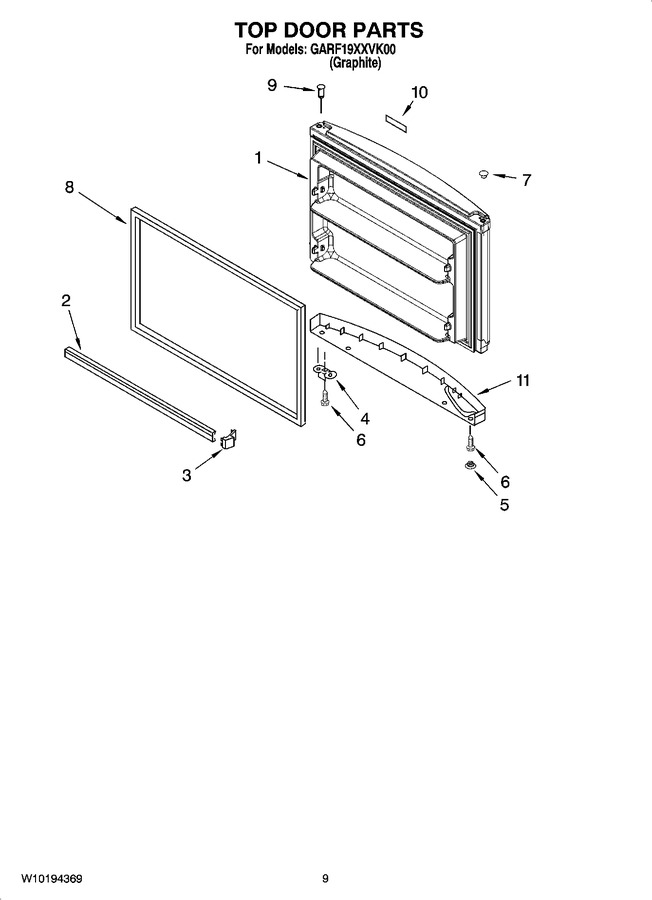

05 - Top Door Parts
06 - Shelf Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2254118 | Top Door (includes Illus. 8 & 9) |
|
- | |||||
| 2 | 2195946 | Trim, Door |
|
$ 46.58 | |||||
| 3 | WP2195916K | Endcap (4) (Replaces: 2195916) |
|
Immediately | $ 11.30 | ||||
| 4 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 12.03 | ||||
| 5 | 2204839 | Hole Plug, Endcap |
|
- | |||||
| 6 | WP681249 | Screw, 8-18 X 3/4 (Replaces: 489276) |
|
Immediately | $ 7.07 | ||||
| 7 | WP2212651 | Hole Plug Hinge Sleeve (Replaces: 2212651) |
|
$ 20.75 | |||||
| 8 | 2177304 | Door Gasket, Magnetic (Replaces: 2214968) |
|
$ 202.57 | |||||
| 9 | WP2183003 | Thimble (Replaces: 2183003) |
|
$ 6.98 | |||||
| 10 | 2253774 | Nameplate |
|
- | |||||
| 11 | 2253077 | Handle |
|
- |
