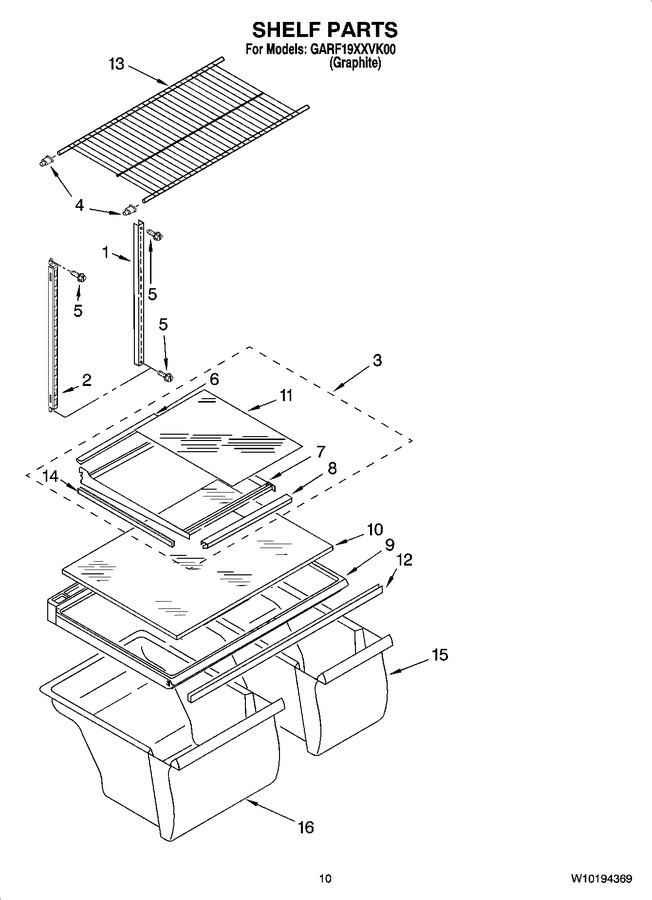

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2210522 | Shelf, Ladder (2) |
|
$ 44.10 | |||||
| 2 | 2300520 | Shelf, Ladder Center |
|
$ 75.36 | |||||
| 3 | 2201107K | Shelf, Cantilever (complete) |
|
$ 169.02 | |||||
| 4 | WPW10130299 | Cup, Shelf Mtg. (Replaces: 2163762) |
|
Immediately | $ 12.60 | ||||
| 5 | WP489478 | Screw (Replaces: 489478) |
|
$ 6.98 | |||||
| 6 | WP2188689 | Trim, Shelf (rear) (Replaces: 2188686) |
|
$ 104.18 | |||||
| 7 | 2201101E | Shelf, Cantilever |
|
- | |||||
| 8 | 2188684 | Trim, Shelf Front |
|
$ 11.33 | |||||
| 9 | WP2314548 | Crisper Cover (Replaces: 2314497) |
|
$ 222.71 | |||||
| 10 | WP2169921 | Insert, Crisper Cover (Replaces: 2221693) |
|
$ 221.94 | |||||
| 11 | 2200985 | Glass Shelf |
|
- | |||||
| 12 | WP2172748 | Crisper, Support (Replaces: 2314477) |
|
$ 87.50 | |||||
| 13 | WP2176275 | Shelf, Freezer (Replaces: 2176275) |
|
$ 111.06 | |||||
| 14 | 2188711 | Trim, Shelf Side |
|
- | |||||
| 15 | W10856580 | Pan, Crisper (10 Inch) (Replaces: 2218123) |
|
Immediately | $ 151.74 | ||||
| 16 | W10854037 | Crisper Pan (13-inch) (Replaces: 2218124) |
|
Immediately | $ 153.59 | ||||
| 1117510 | Torx Key |
|
$ 5.84 | ||||||
| 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | |||||
| 876370 | Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``) |
|
$ 208.40 | ||||||
| 876029 | Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``) |
|
- | ||||||
| 511873 | Paint, Touch-up 1/2 Oz. (white Porcelain) |
|
$ 44.36 | ||||||
| 606755 | Bag, Insulation (36-5/8`` X 46``) |
|
$ 70.61 | ||||||
| 799833 | Kit, Evaporator Repair (aluminum Epoxy) |
|
- | ||||||
| 799832 | Kit. Porcelain Repair (white) |
|
- | ||||||
| 350942 | Primer, White (12 Oz. Spray Can) |
|
$ 80.69 | ||||||
| 285006 | Enamel, Black (12 Oz. Spray Can) (Replaces: 350939) |
|
Immediately | $ 51.34 | |||||
| 8171357 | Enamel, Graphite (12 Oz. Spray Can) |
|
$ 74.08 | ||||||
| 80051 | Brush Touch-up Kit (graphite) |
|
$ 7.64 | ||||||
| WP503695 | Cork, Sealer 1/4 Pound) (Replaces: 503695) |
|
$ 106.15 | ||||||
| 799340 | Enamel, Black (1 Qt. Uncut) |
|
- | ||||||
| 8171358 | Enamel, Graphite (1 Qt. Uncut) |
|
- | ||||||
| 833938 | Kit, Terminal Connector |
|
$ 7.26 | ||||||
| 542639 | Cement, Alumilastic 1-1/4 Oz.) |
|
- | ||||||
| WP542638 | Grease, Silicone (1/2 Oz.) (Replaces: 542638) |
|
Immediately | $ 10.96 | |||||
| WP505587 | Sealer, Mastic (1 Qt.). (Replaces: 505587) |
|
Immediately | $ 156.56 | |||||
| 876370 | Kit, Insulation (14 Pcs. 3`` X 24`` X 48``) (Replaces: 876305) |
|
$ 208.40 | ||||||
| 876370 | Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``) (Replaces: 978941) |
|
$ 208.40 | ||||||
| 212643 | Sealer, Gum (4 Feet) |
|
Immediately | $ 73.92 | |||||
| 479502 | Tape, Vinyl 3/4 X 108``) |
|
$ 66.77 |
