01 - Cabinet Parts

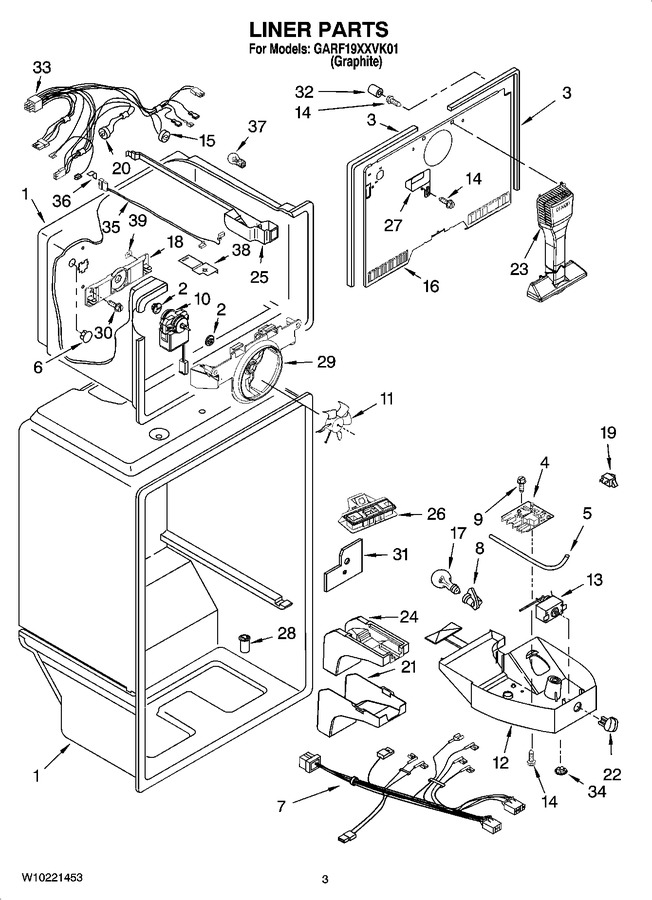

02 - Liner Parts
03 - Bottom Door Parts
04 - Unit Parts
05 - Top Door Parts
06 - Shelf Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | WP2264462 | Grommet (2) (Replaces: 2197380) |
|
Immediately | $ 39.57 | ||||
| 3 | WP2254360 | Gasket, Evaporator Cover (Replaces: 2254359) |
|
$ 24.10 | |||||
| 4 | WP2304099 | Adaptive Defrost Control (Replaces: 2304099) |
|
Immediately | $ 266.62 | ||||
| 5 | WP2196003 | Thermostat Tube, Barrier (Replaces: 2204640) |
|
$ 7.16 | |||||
| 6 | WP941839 | Hole, Plug (Replaces: 941839) |
|
$ 6.89 | |||||
| 7 | 2187876 | Wire Assembly, Control Box |
|
- | |||||
| 8 | 4387478 | Socket, Light (Replaces: 2162085) |
|
Immediately | $ 99.14 | ||||
| 9 | 8534009 | Screw |
|
- | |||||
| 10 | WP2320109 | Fan Motor (Replaces: 2320109) |
|
$ 194.03 | |||||
| 11 | WP2163777 | Fan Blade (Replaces: 2163777) |
|
Immediately | $ 59.54 | ||||
| 12 | 2319864 | Control Box |
|
- | |||||
| 13 | 2254102 | Thermostat Assy. |
|
- | |||||
| 14 | WP489478 | Screw (Replaces: 489478) |
|
$ 6.98 | |||||
| 15 | W10854531 | Bi-metal (Replaces: 2321814) |
|
$ 108.81 | |||||
| 16 | 2320191 | Cover, Evaporator |
|
$ 205.80 | |||||
| 17 | W10887190 | Light Bulb (Replaces: 2257556) |
|
Immediately | $ 16.48 | ||||
| 18 | 2254454 | Bracket, Evap. Fan, Rear |
|
Immediately | $ 64.67 | ||||
| 19 | W11384469 | Switch, Rocker Arm (Replaces: 1118894) |
|
Immediately | $ 33.51 | ||||
| 20 | W10144425 | Bimetal Defrost |
|
- | |||||
| 21 | 2176281 | Cover, Air Diffuser |
|
$ 41.64 | |||||
| 22 | WP2202885 | Knob, Thermostat (Replaces: 2202885) |
|
$ 23.74 | |||||
| 23 | WP2254354 | Air Tower (Replaces: 2254354) |
|
$ 92.78 | |||||
| 24 | WP2189452 | Air Diffuser, Bottom (Replaces: 2189452) |
|
Immediately | $ 112.31 | ||||
| 25 | 2300417 | Housing Base |
|
$ 50.28 | |||||
| 26 | 2210390 | Air Separator Assembly |
|
$ 54.27 | |||||
| 27 | 2205003 | Cover, Hole |
|
- | |||||
| 28 | WP2210509 | Valve, Release (Replaces: 2171931) |
|
$ 84.99 | |||||
| 29 | 2254453 | Bracket Fan Motor |
|
$ 45.87 | |||||
| 30 | WP488163 | Screw (Replaces: 488208) |
|
$ 6.79 | |||||
| 31 | 2204639 | Shield, Heat |
|
- | |||||
| 32 | WP487996 | Cap (Replaces: 487996) |
|
$ 7.43 | |||||
| 33 | W10167462 | Wire Assembly, Freezer Compartment (includes 15 & 20) |
|
- | |||||
| 34 | 940014 | Hole Plug, Control Box |
|
$ 18.33 | |||||
| 35 | 2187601 | Wiring Harness, Freezer Light |
|
- | |||||
| 36 | 2166284 | Gasket, Rear |
|
$ 6.06 | |||||
| 37 | 4396822 | Light Bulb (Replaces: 2260802) |
|
Immediately | $ 11.64 | ||||
| 38 | 2193491 | Electrical Shield, Freezer Light |
|
$ 5.81 | |||||
| 39 | 2320183 | Retainer-screw |
|
- |
