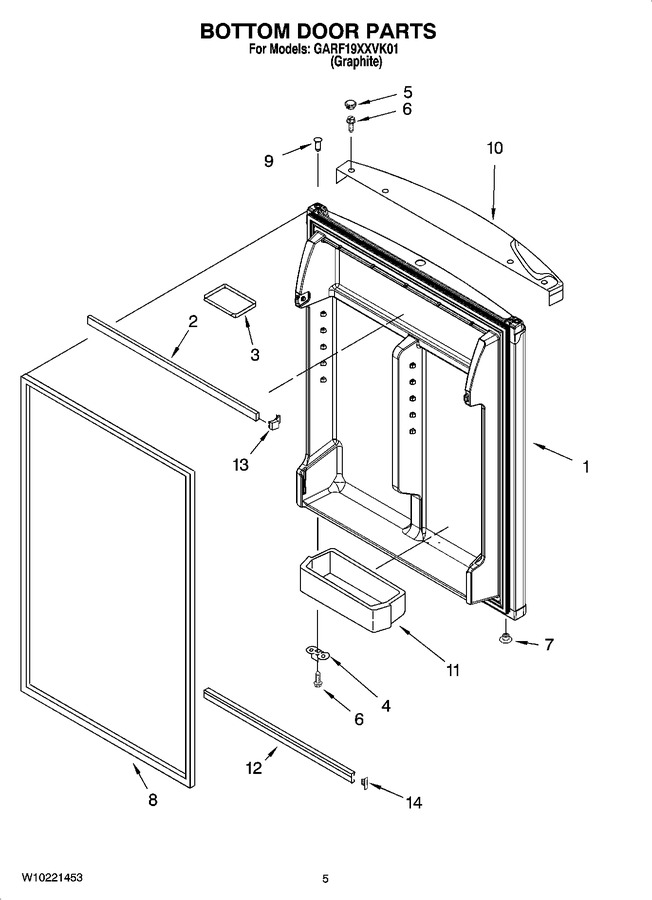

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2254117 | Bottom Door (includes Illus. 8 & 9) |
|
- | |||||
| 2 | 2159312 | Trim-door Shelf |
|
$ 47.75 | |||||
| 3 | 2159302 | Tray, Door |
|
$ 42.08 | |||||
| 4 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 12.03 | ||||
| 5 | 2204839 | Hole Plug, Endcap |
|
- | |||||
| 6 | WP681249 | Screw, 8-18 X 3/4 (Replaces: 489276) |
|
Immediately | $ 7.07 | ||||
| 7 | WP2212651 | Hole Plug Hinge Sleeve (Replaces: 2212651) |
|
$ 20.75 | |||||
| 8 | 2177305 | Door Gasket, Magnetic (Replaces: 2202881) |
|
$ 246.66 | |||||
| 9 | WP2183003 | Thimble (Replaces: 2183003) |
|
$ 6.98 | |||||
| 10 | 2253078 | Handle |
|
- | |||||
| 11 | 2204811 | Bin, Door (4) |
|
$ 35.90 | |||||
| 12 | WPW10421484 | Trim, Door Shelf (Replaces: 2195949) |
|
$ 116.78 | |||||
| 13 | 2177340 | Endcap, Door Trim |
|
$ 5.84 | |||||
| 14 | WP2156006 | Plug-trim (Replaces: 2156006) |
|
Immediately | $ 10.96 |
