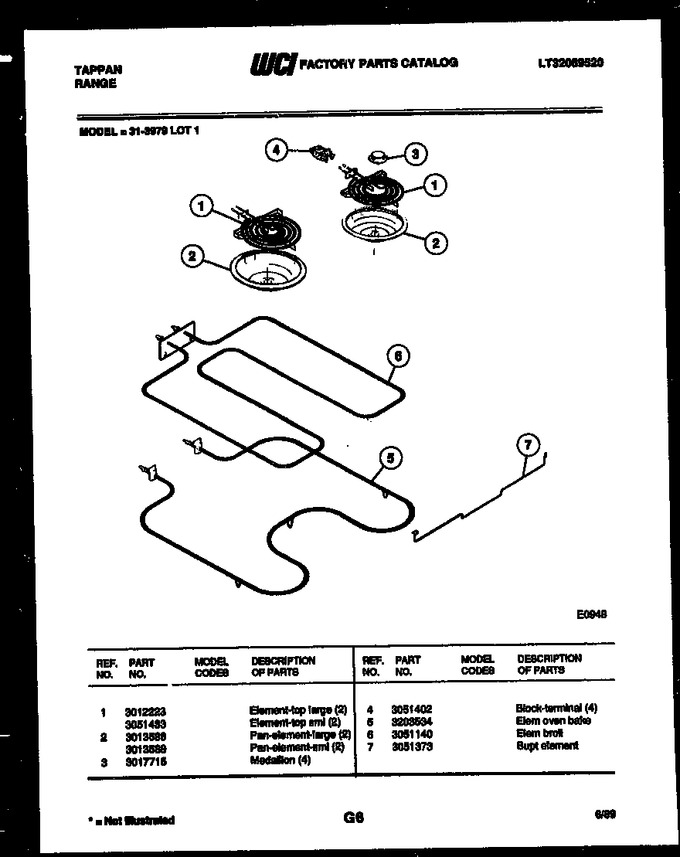

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3012223 | Element-top Large (2) |
|
- | |||||
| 2 | 3013588 | Pan, Element, Large (2) |
|
- | |||||
| 3 | 3017715 | Medallion (4) |
|
- | |||||
| 4 | 3051402 | Block, Terminal (4) |
|
- | |||||
| 5 | 316075103 | Elem Oven Bake (Replaces: 3203534) |
|
Immediately | $ 42.36 | ||||
| 6 | 3051140 | Elem-broil |
|
- | |||||
| 7 | 3051373 | Supt-element |
|
- | |||||
| 1A | 3051433 | Element-top Sml (2) |
|
- | |||||
| 2A | 3013589 | Pan-element-sml (2) |
|
- |
