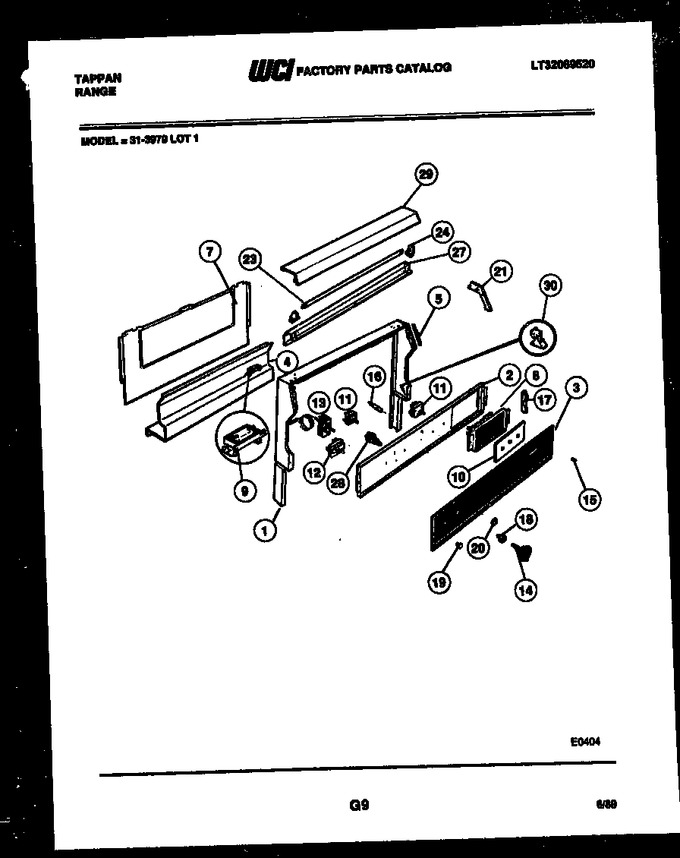

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3204862		Trim - Wrapper		Appelez-nous	-
2	3203536		Plate-instrument Mtg		Appelez-nous	-
3	3204861		Panel-control		Appelez-nous	-
4	3204728		Trim - Lwr Splasher (white)		Appelez-nous	-
5	3204753		Trim-glass Rtnr Lh		Appelez-nous	-
7	3131123		Shield, Rear Wall		Appelez-nous	-
8	3204766		Clock		Appelez-nous	-
9	3051115		Ballast		Appelez-nous	-
10	3201695		Glass - Clock		Appelez-nous	-
11	08010418		Switch-top Elements (4)		Appelez-nous	-
12	3201732		Switch-selector		Appelez-nous	-
13	3204581		Thermostat-oven		Appelez-nous	-
14	3204751		Knob-control (4)		Appelez-nous	-
15	3131472		Knob-clock		Appelez-nous	-
16	08037896		Indicator Lite-s/u		Appelez-nous	-
17	3201700		Retainer - Clock Gl (2)		Appelez-nous	-
18	3204745		Bushing-cont Shaft		Appelez-nous	-
19	08037703		Lens		Appelez-nous	-
20	3011507		Bezel-switch (4)		Appelez-nous	-
21	3204609		Cap End - Lh		Appelez-nous	-
23	3131275		Bulb-flour				$ 49.40
24	3051222		Recept-flour Lt Lh		Appelez-nous	-
27	3131277		Supt-flour Recept Mtg		Appelez-nous	-
28	3200479		Switch-ov Lt		Appelez-nous	-
29	3204614		Trim - Canopy		Appelez-nous	-
30	3131237		Support, Background		Appelez-nous	-
*25414	3131468		Bracket, Backguard		Appelez-nous	-
*25414	3051224		Retainer - Ind Lens (4)		Appelez-nous	-
14A	3204768		Knob-selector Switch		Appelez-nous	-
14B	3204767		Knob-thermostat		Appelez-nous	-
16A	3201727		Indicator Lite, Oven (black)		Appelez-nous	-
16B	3201726		Indicator Lite, Clean (blue)		Appelez-nous	-
16C	3201728		Indicator Lite, Lock (red)		Appelez-nous	-
21A	3204610		Cap End - Rh		Appelez-nous	-
24A	3051223		Recept-flour Lt Rh		Appelez-nous	-
28A	3200480		Switch-fl-lt		Appelez-nous	-
5A	3204754		Trim-glass Rtnr Rh		Appelez-nous	-
