01 - Freezer Compartment


02 - Freezer Door


03 - Fresh Food Compartment


04 - Fresh Food Door


05 - Ice & Water Dispenser


06 - Ice Maker & Bin


07 - Shelves & Accessories


08 - Unit Compartment & System

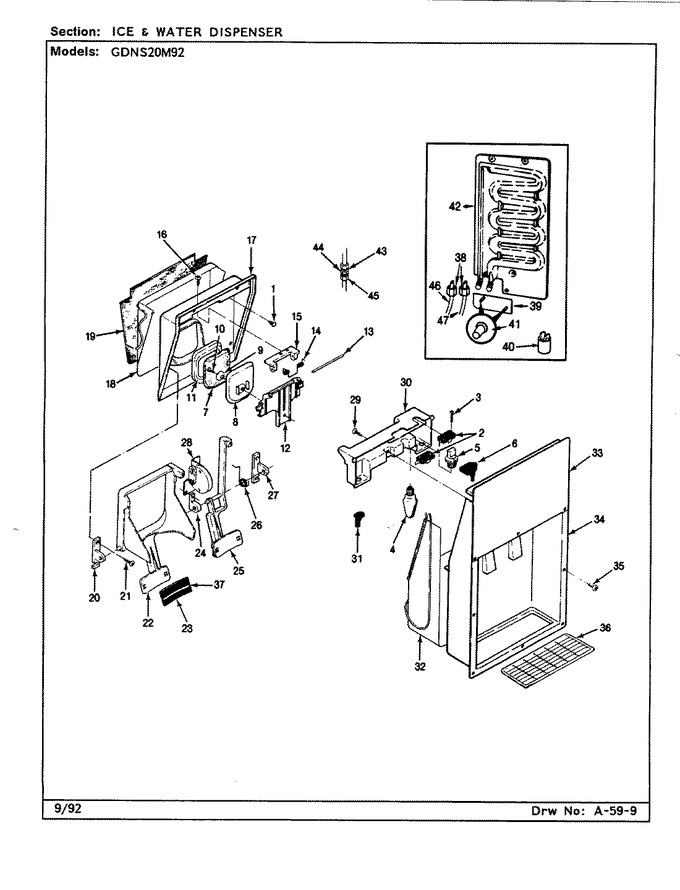

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	28272-6		Bumper, Door		Appelez-nous	-
2	55440-2		Switch, Ice & Water				$ 11.94
3	405071-1		Screw		Appelez-nous	-
4	63179-3		Bulb, Light		Appelez-nous	-
5	67293-1		Socket, Light (w/nut)		Appelez-nous	-
6	68491-1		Wire Harness, Switch		Appelez-nous	-
6	67340-1		Switch, Push		Appelez-nous	-
6	27116-5		Nut, Wire		Appelez-nous	-
7	68557-1		Insulation, Ice Door		Appelez-nous	-
8	68957-2		Door, Ice				$ 6.21
9	68566-1		Retainer		Appelez-nous	-
10	405116-103		Screw		Appelez-nous	-
11	69867-1		Seal, Ice Door				$ 5.70
12	68563-2		Strike, Ice Door		Appelez-nous	-
13	68564-1		Shaft		Appelez-nous	-
14	69868-1		Spring, Ice Door		Appelez-nous	-
14	68765-1		Spring		Appelez-nous	-
15	68958-1		Bracket, Pivot		Appelez-nous	-
16	405024-103		Screw		Appelez-nous	-
17	WP1163283		Screw   (Replaces: 405025-103)				$ 6.47
17	68567-2		Back, Fountain (wht)		Appelez-nous	-
18	69133-1		Heater, Fountain Back		Appelez-nous	-
19	68714-1		Insulation, Foil		Appelez-nous	-
20	68627-1		Pivot, Actuator (lt)		Appelez-nous	-
21	405024-103		Screw		Appelez-nous	-
22	69112-2		Paddle, Ice (wht)		Appelez-nous	-
23	69174-2		Pad, Paddle (wht)		Appelez-nous	-
24	68764-1		Pivot, Actuator (center)		Appelez-nous	-
25	68558-2		Paddle, Water (wht)		Appelez-nous	-
26	68767-1		Spring, Paddle Return		Appelez-nous	-
27	68628-1		Pivot, Actuator (rt)---na		Appelez-nous	-
28	WP1163283		Screw   (Replaces: 405025-103)				$ 6.47
28	68827-1		Motor, Inertia		Appelez-nous	-
29	WP1163283		Screw   (Replaces: 405025-103)				$ 6.47
30	68626-1		Bracket		Appelez-nous	-
31	68568-1		Plunger		Appelez-nous	-
32	68936-2		Heater, Fountain		Appelez-nous	-
33	68625-1		Fountain Front		Appelez-nous	-
34	68954-2		Fountain (wht)		Appelez-nous	-
35	WP1163283		Screw   (Replaces: 405025-103)				$ 6.47
36	68631-1		Grill		Appelez-nous	-
37	68763-1		Trim, Paddle Pad				$ 5.04
38	WP627018		Nut, Compression (1/4``)   (Replaces: 55419-1)				$ 9.87
39	68522-1		Cover, Water Line Conn.		Appelez-nous	-
39	59135-1		Clamp, Tank Tubing		Appelez-nous	-
40	19530-36		Nylon Nut		Appelez-nous	-
41	29356-1		Retainer, Nameplate		Appelez-nous	-
42	69065-3		Tank, Water		Appelez-nous	-
42	400048-28		Screw		Appelez-nous	-
43	WP627018		Nut, Compression (1/4``)   (Replaces: 55419-1)				$ 9.87
44	WP4373559		Union, Reducing   (Replaces: 67612-1)				$ 69.62
45	55604-1		Nut, Compression (5/16``)		Appelez-nous	-
46	WPB5705307		Tubing   (Replaces: 67579-15)				$ 11.19
47	WPB5705307		Tubing, Valve To Grommet   (Replaces: 67579-2)				$ 11.19
47	WPW10426709		Tubing, Valve To Tank (5/16``)   (Replaces: 67187-14)				$ 126.83
