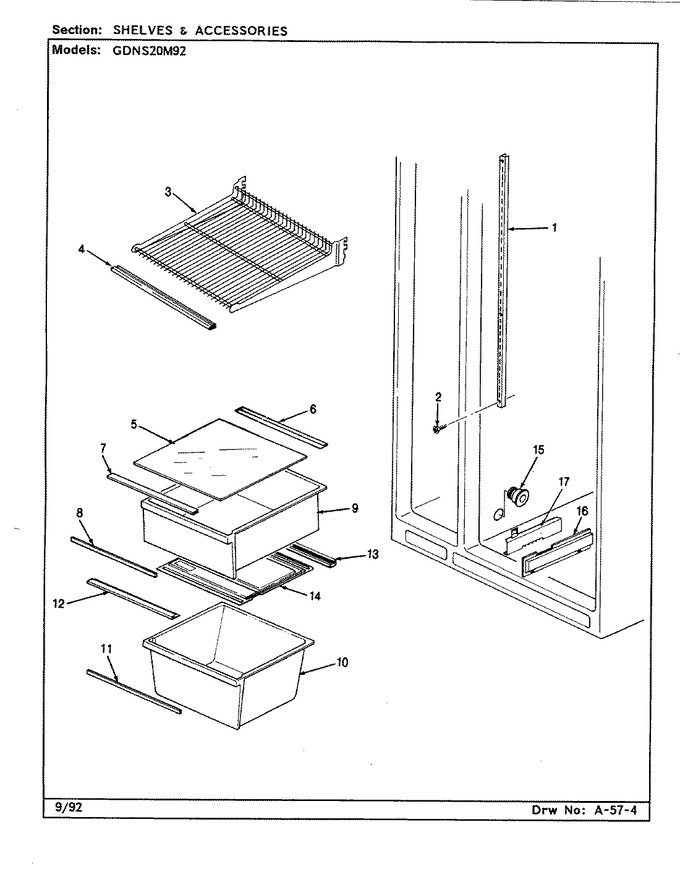

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	58381-4		Rail, Shelf Support		Appelez-nous	-
2	400037-28		Screw		Appelez-nous	-
3	65606-7		Shelf, Wire		Appelez-nous	-
4	66649-9		Trim, Shelf		Appelez-nous	-
5	68139-31		Shelf, Crisper (glass)		Appelez-nous	-
6	68157-1		Seal, Crisper Pan (rear)		Appelez-nous	-
7	66650-1		Trim		Appelez-nous	-
8	68124-93		Insert, Pan		Appelez-nous	-
9	66509-20		Pan, Crisper		Appelez-nous	-
10	66510-20		Pan, Meat		Appelez-nous	-
11	68124-93		Insert, Pan		Appelez-nous	-
12	65648-1		Seal, Meat Pan (front)		Appelez-nous	-
13	65649-1		Seal, Meat Pan (rear)		Appelez-nous	-
14	65608-5		Cover, Meat Pan		Appelez-nous	-
15	56686-4		Clip		Appelez-nous	-
15	53726-2		Tunnel, Air (meat)		Appelez-nous	-
16	65737-2		Control Housing		Appelez-nous	-
17	65736-1		Slide Control, (meat)		Appelez-nous	-
