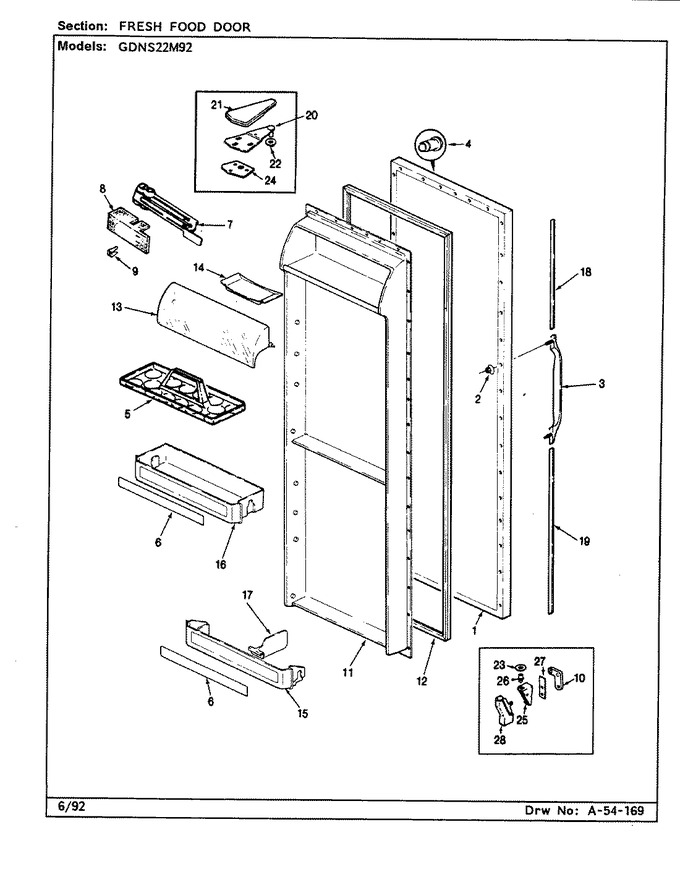

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	72048-20-WW		Panel, F.f. Door (wht)		Appelez-nous	-
2	434003-506		Fastener		Appelez-nous	-
3	68656-3		Handle		Appelez-nous	-
4	29356-1		Retainer, Nameplate		Appelez-nous	-
5	60066-1		Tray, Egg		Appelez-nous	-
6	68121-60		Insert		Appelez-nous	-
6	68121-61		Insert		Appelez-nous	-
7	54485-1		Closer, Door		Appelez-nous	-
8	52613-1		Insulation, Closer		Appelez-nous	-
9	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
9	52614-1		Bracket, Closer		Appelez-nous	-
10	67874-1		Tapping Plate, Lower Hinge		Appelez-nous	-
10	65275-59		Screw		Appelez-nous	-
11	65275-5		Screw		Appelez-nous	-
11	65943-7		Liner, Door		Appelez-nous	-
12	66929-2		Gasket		Appelez-nous	-
13	69058-12		Door, Dairy		Appelez-nous	-
14	29936-2		Tray, Butter		Appelez-nous	-
15	65781-6		Shelf Front		Appelez-nous	-
16	65782-6		Shelf, Pick-off		Appelez-nous	-
17	66645-4		Organizer, Pick-off Shelf		Appelez-nous	-
18	68614-1		Trim		Appelez-nous	-
19	68614-2		Trim, Handle Extension (lower)		Appelez-nous	-
20	53709-26		Hinge Upper		Appelez-nous	-
20	WP3-24838-048		Screw   (Replaces: 65275-52)				$ 7.00
21	65003-6		Cover, Upper Hinge (wht)		Appelez-nous	-
22	WP52185-1		Washer   (Replaces: 52185-1)			Immediately	$ 9.47
23	67483-3		Washer, Lower Hinge   (Replaces: 67483-2)			Immediately	$ 45.86
24	65031-1		Shim, Upper Hinge		Appelez-nous	-
25	65275-51		Screw, Lower Hinge		Appelez-nous	-
25	68975-4		Hinge, Lower		Appelez-nous	-
26	68977-1		Pin, Hinge		Appelez-nous	-
27	69031-1		Shim		Appelez-nous	-
28	68978-4		Cover, Lower Hinge (wht)		Appelez-nous	-
