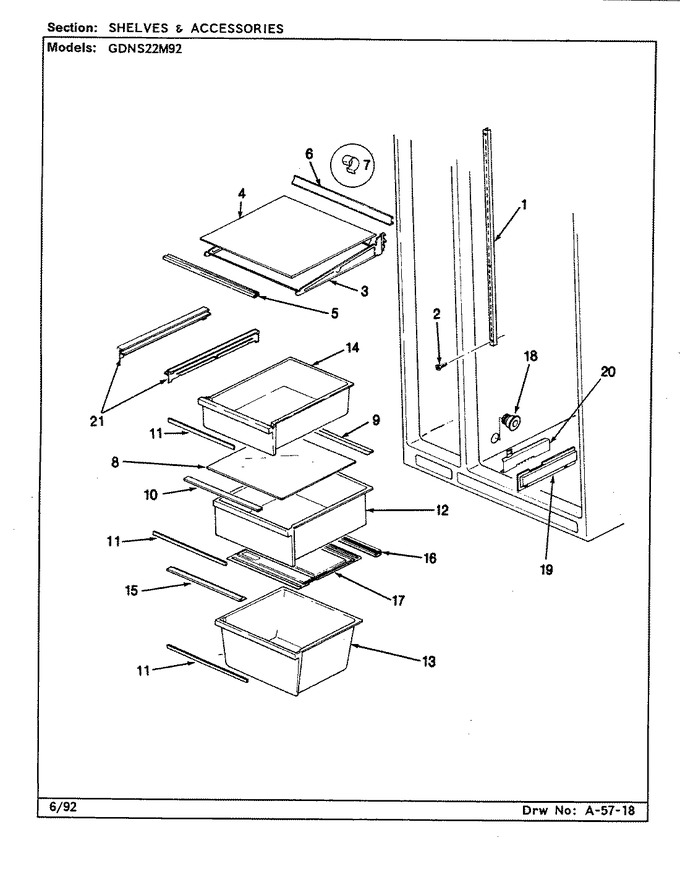

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	58381-4		Rail, Shelf Support		Appelez-nous	-
2	400037-28		Screw		Appelez-nous	-
3	65618-5		Frame, Shelf		Appelez-nous	-
4	68139-28		Glass, Deli		Appelez-nous	-
4	68139-22		Glass, Cantilever Shelf		Appelez-nous	-
5	66649-7		Trim Shelf		Appelez-nous	-
6	65276-41		Trim Shelf		Appelez-nous	-
7	66333-1		Clip, Shelf Trim		Appelez-nous	-
8	68139-23		Crisper Shelf(glass)		Appelez-nous	-
9	68157-2		Seal, Crisper Pan (rear)		Appelez-nous	-
10	66650-2		Seal, Crisper Pan (front)		Appelez-nous	-
11	68124-90		Insert		Appelez-nous	-
12	66636-61		Pan, Crisper		Appelez-nous	-
13	66636-62		Pan, Meat		Appelez-nous	-
14	66636-67		Deli-pan		Appelez-nous	-
15	65648-2		Seal, Meat Pan (front)		Appelez-nous	-
16	65649-2		Seal, Meat Pan (rear)		Appelez-nous	-
17	65608-6		Cover, Meat Pan		Appelez-nous	-
18	53726-2		Tunnel, Air (meat)		Appelez-nous	-
19	56686-4		Clip		Appelez-nous	-
19	65737-2		Control Housing		Appelez-nous	-
20	65736-1		Slide Control, (meat)		Appelez-nous	-
21	68805-1		Slide Rail, Deli Drawer		Appelez-nous	-
