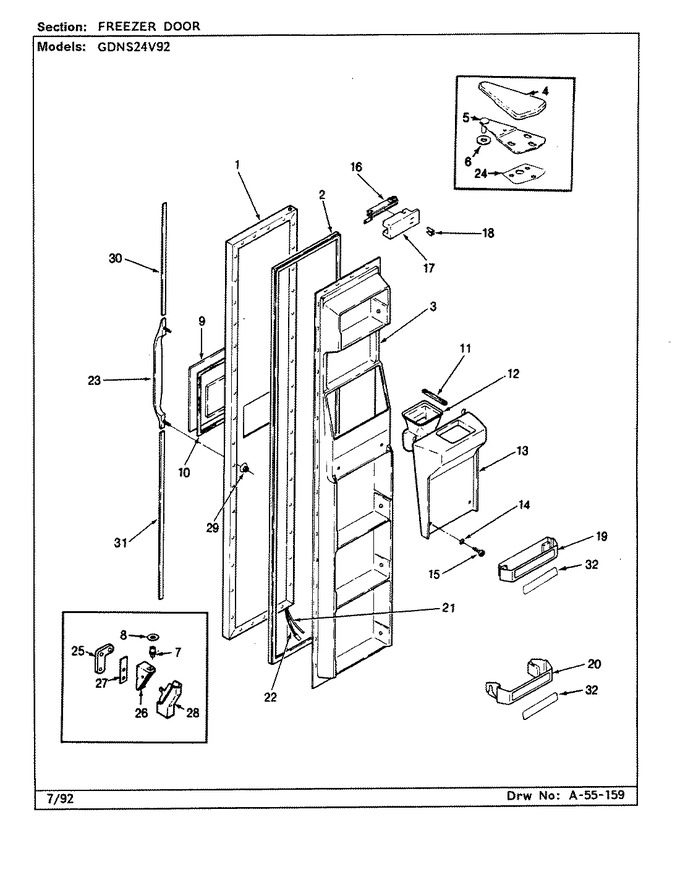

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	72046-23-WW		Panel, Frz. Door (wht)		Appelez-nous	-
2	66929-1		Gasket, Freezer Door		Appelez-nous	-
3	65275-5		Screw		Appelez-nous	-
3	68784-10		Insert		Appelez-nous	-
3	68554-2		Liner		Appelez-nous	-
4	65003-6		Cover, Upper Hinge (wht)		Appelez-nous	-
5	53709-26		Hinge Upper		Appelez-nous	-
5	WP3-24838-048		Screw   (Replaces: 65275-52)				$ 7.00
6	WP52185-1		Washer   (Replaces: 52185-1)			Immediately	$ 9.47
7	68976-1		Pin, Lower Hinge		Appelez-nous	-
8	67483-3		Washer, Door Spacer			Immediately	$ 45.86
9	68594-40		Escutcheon		Appelez-nous	-
10	95121-1		Tape, Escutcheon		Appelez-nous	-
11	52077-26		Seal		Appelez-nous	-
12	68569-1		Chute, Ice		Appelez-nous	-
13	68768-2		Insulation		Appelez-nous	-
13	68634-2		Access Panel		Appelez-nous	-
13	68772-1		Insulation		Appelez-nous	-
14	68786-2		Stud		Appelez-nous	-
15	66170-4		Anchor		Appelez-nous	-
15	W11772394		Screw   (Replaces: 400021-103)			Immediately	$ 10.94
16	54485-1		Closer, Door		Appelez-nous	-
16	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
17	52613-1		Insulation, Closer		Appelez-nous	-
18	52614-1		Bracket, Closer		Appelez-nous	-
19	68727-4		Pick-off Shelf		Appelez-nous	-
20	65701-10		Front, Pick-off		Appelez-nous	-
21	WPW10426709		Tubing Plastic-door Panel   (Replaces: 67187-1)				$ 126.83
22	69144-1		Wire Harness Door		Appelez-nous	-
23	68656-3		Handle		Appelez-nous	-
24	65031-1		Shim, Upper Hinge		Appelez-nous	-
25	67874-1		Tapping Plate, Lower Hinge		Appelez-nous	-
25	65275-59		Screw		Appelez-nous	-
26	65275-51		Screw, Lower Hinge		Appelez-nous	-
26	68975-3		Hinge, Lower		Appelez-nous	-
27	69031-2		Shim		Appelez-nous	-
28	68978-4		Cover, Lower Hinge (wht)		Appelez-nous	-
28	65275-56		Screw		Appelez-nous	-
29	434003-506		Fastener		Appelez-nous	-
30	68614-1		Trim		Appelez-nous	-
31	68614-2		Trim, Handle Extension (lower)		Appelez-nous	-
32	68121-63		Insert		Appelez-nous	-
32	68121-62		Insert		Appelez-nous	-
