SELECT A DIAGRAM

01 - Freezer Compartment


02 - Freezer Door


03 - Fresh Food Compartment


04 - Fresh Food Door


05 - Ice & Water Dispenser


06 - Ice Maker & Bin

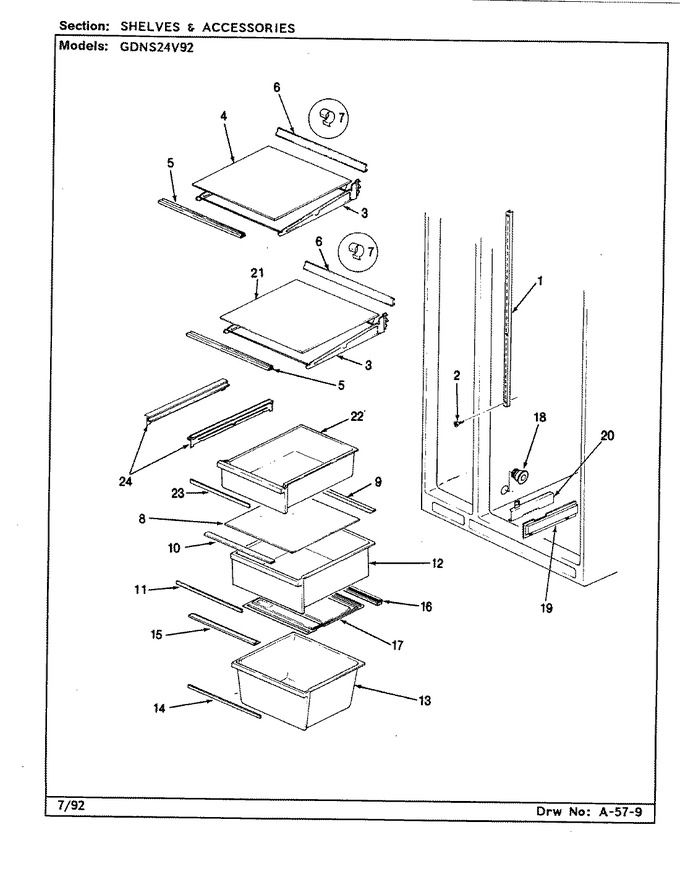

07 - Shelves & Accessories


08 - Unit Compartment & System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	58381-4		Rail, Shelf Support		Appelez-nous	-
2	400037-28		Screw		Appelez-nous	-
3	65618-5		Frame, Shelf		Appelez-nous	-
4	68139-22		Glass, Cantilever Shelf		Appelez-nous	-
5	66649-7		Trim Shelf		Appelez-nous	-
6	65276-40		Trim Shelf		Appelez-nous	-
7	66333-1		Clip, Shelf Trim		Appelez-nous	-
8	68139-23		Crisper Shelf(glass)		Appelez-nous	-
9	68157-2		Seal, Crisper Pan (rear)		Appelez-nous	-
10	66650-2		Seal, Crisper Pan (front)		Appelez-nous	-
11	68124-90		Insert		Appelez-nous	-
12	66636-61		Pan, Crisper		Appelez-nous	-
13	66636-62		Pan, Meat		Appelez-nous	-
14	68124-90		Insert		Appelez-nous	-
15	65648-2		Seal, Meat Pan (front)		Appelez-nous	-
16	65649-2		Seal, Meat Pan (rear)		Appelez-nous	-
17	65608-4		Cover, Meat Pan		Appelez-nous	-
18	53726-1		Air Tunnel		Appelez-nous	-
19	56686-4		Clip		Appelez-nous	-
19	65737-2		Control Housing		Appelez-nous	-
20	65736-1		Slide Control, (meat)		Appelez-nous	-
21	68139-28		Glass, Deli		Appelez-nous	-
22	66636-67		Deli-pan		Appelez-nous	-
23	68124-90		Insert		Appelez-nous	-
24	68805-1		Slide Rail, Deli Drawer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
