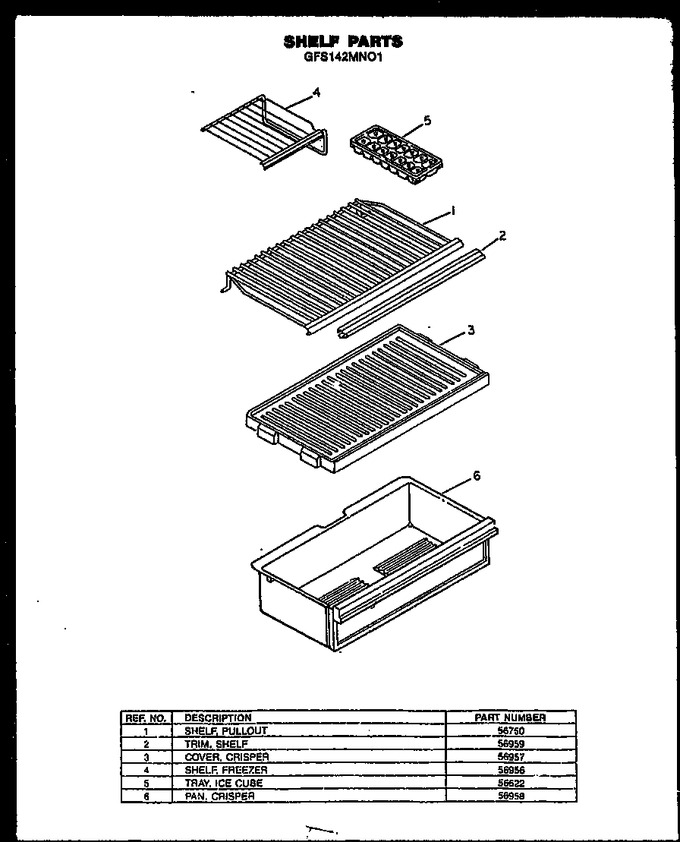

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 56750 | Assy,wiring Harness-ho |
|
- | |||||
| 2 | Y0056959 | Trim, Shelf |
|
- | |||||
| 3 | 56957 | Cover, Crisper |
|
- | |||||
| 4 | Y0056956 | Shelf, Freezer |
|
- | |||||
| 5 | Y0056622 | Tray, Ice |
|
- | |||||
| 6 | 0056958 | Pan, Crisper |
|
- |
