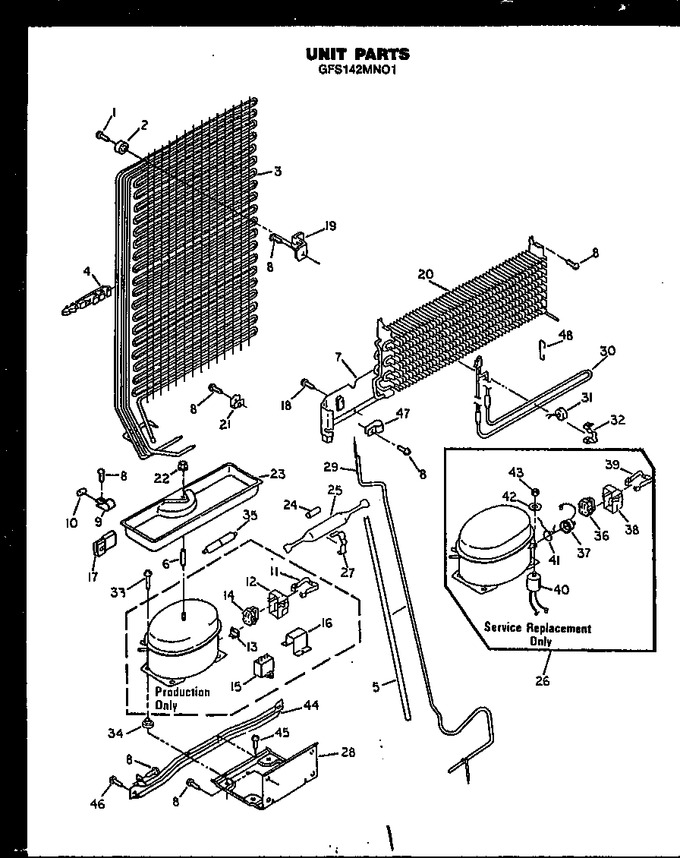

01 - Compartment Separator Parts


02 - Fz Door Parts


03 - Liner Parts


04 - Page 1


05 - Page 6


06 - Ref Door Parts


07 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0056515		Sub 56513, Screw		Appelez-nous	-
2	56700		Frame,r.h.		Appelez-nous	-
3	Y0056760		Condenser & Precooler		Appelez-nous	-
4	56937		Transformer		Appelez-nous	-
5	Y0056834		Sub 56854, Sleeve		Appelez-nous	-
6	56758		Lock & Key		Appelez-nous	-
7	Y0056842		Heat Shield, Evaporator		Appelez-nous	-
8	Y0056568		Screw		Appelez-nous	-
9	0056573		Tube Clamp		Appelez-nous	-
10	0056710		Dampener		Appelez-nous	-
11	Y0056646		Strap, Relay Cover		Appelez-nous	-
12	Y0056840		Case, Relay		Appelez-nous	-
13	0056767		Overload		Appelez-nous	-
14	0056839		Sub 56503,overload		Appelez-nous	-
15	0056934		Sub 56908, Capacitor		Appelez-nous	-
16	Y0056929		Cover, Capacitor		Appelez-nous	-
17	0056632		Housing Plug		Appelez-nous	-
18	Y0056510		Screw, 8 X 3/8		Appelez-nous	-
19	56703		Guard,coin Slide		Appelez-nous	-
20	Y0056848		Evaporator		Appelez-nous	-
21	Y0056671		Mtg. Clip, Condenser		Appelez-nous	-
22	Y0056554		Nut		Appelez-nous	-
23	0056741		Tray, Evaporator		Appelez-nous	-
24	Y0056572		Sleeve, Restrictor		Appelez-nous	-
25	W10843121		Drier   (Replaces: Y0056708)			Immediately	$ 47.31
26	W10439652		Compressor Assy   (Replaces: Y0056501)				$ 379.03
27	Y0056586		Clamp, Drier		Appelez-nous	-
28	56674		Plate, Mounting		Appelez-nous	-
29	Y0056757		Heat Exchanger		Appelez-nous	-
30	Y310632		Screw		Appelez-nous	-
31	Y310631		Bi-metal, Defrost		Appelez-nous	-
32	Y0056676		Clamp		Appelez-nous	-
33	Y0056546		Screw		Appelez-nous	-
34	56739		Plate,face-coin Door-r		Appelez-nous	-
35	Y0056759		Muffler		Appelez-nous	-
36	0056839		Sub 56503,overload		Appelez-nous	-
37	56503		Timer		Appelez-nous	-
38	Y0056755		Sub 56840, Cover, Relay		Appelez-nous	-
39	Y0056646		Strap, Relay Cover		Appelez-nous	-
40	56502		Spacer,timer		Appelez-nous	-
41	Y0056904		Spring, Overload		Appelez-nous	-
42	Y0056550		Washer		Appelez-nous	-
43	56549		Plate,terminal Bracket		Appelez-nous	-
44	Y0056673		Mtg. Rail		Appelez-nous	-
45	Y0056507		Sub 56510, Screw		Appelez-nous	-
46	Y0056536		Screw, 1/4-28 X 1		Appelez-nous	-
47	Y0056553		Clamp		Appelez-nous	-
48	Y0056845		Support, Heater		Appelez-nous	-
NI	Y0057043		Kit, Evaporator Repair		Appelez-nous	-
