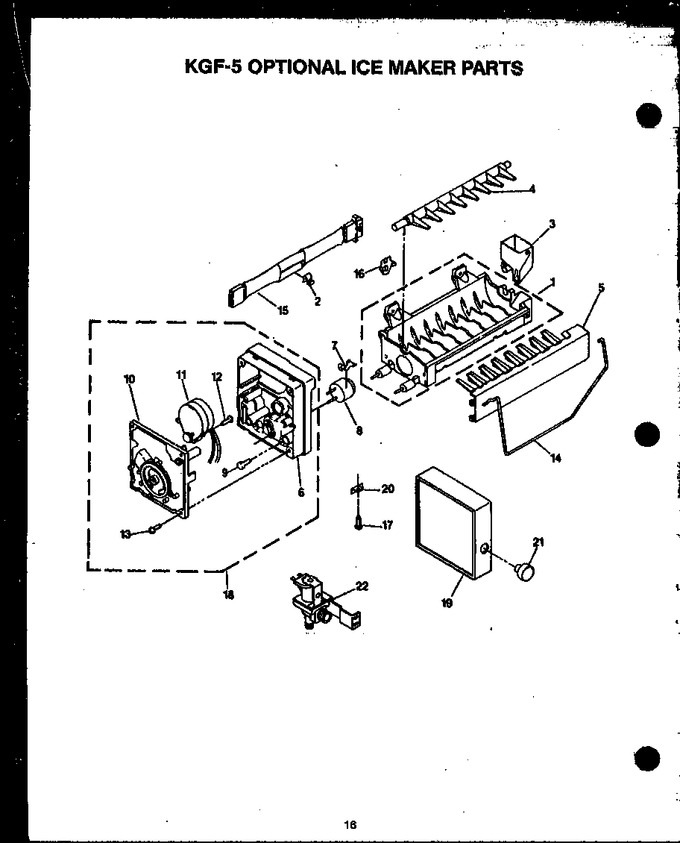

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y0311694 | Mold & Heater Assy |
|
- | |||||
| 2 | WP628379 | Clip, Thermal Fuse (Replaces: Y0056607) |
|
$ 9.51 | |||||
| 3 | WP628356 | Inlet, Water (Replaces: Y0056596) |
|
$ 46.07 | |||||
| 4 | WP627843 | Ejector, Ice (Replaces: Y0056600) |
|
$ 75.24 | |||||
| 5 | 57594 | Ice Stripper |
|
- | |||||
| 6 | WP2195914 | Support (Replaces: Y0056595) |
|
$ 94.11 | |||||
| 7 | WP2315522 | Retainer, Thermostat (Replaces: Y0056598) |
|
$ 9.95 | |||||
| 8 | WP627985 | Thermostat (Replaces: Y0056603) |
|
Immediately | $ 98.26 | ||||
| 9 | Y0311691 | Screw |
|
- | |||||
| 10 | D7824706Q | Ice Maker (Replaces: Y0056504) |
|
Immediately | $ 150.62 | ||||
| 11 | D7824706Q | Sub 56504, Module Assy. (Replaces: Y0056599) |
|
Immediately | $ 150.62 | ||||
| 12 | 0056548 | Screw |
|
- | |||||
| 13 | 0311153 | Sub 56556, Screw |
|
- | |||||
| 14 | Y0056597 | Arm, Shut-off |
|
- | |||||
| 15 | Y0311696 | Wiring Harness |
|
- | |||||
| 16 | 0311693 | Clip, Support |
|
- | |||||
| 17 | WP489128 | Screw (Replaces: Y0056547) |
|
$ 9.79 | |||||
| 18 | D7824706Q | Ice Maker (Replaces: Y0056504) |
|
Immediately | $ 150.62 | ||||
| 19 | Y0056948 | Cover, Front |
|
- | |||||
| 20 | Y0311695 | Bracket Icemaker |
|
- | |||||
| 21 | Y0056604 | Knob |
|
- | |||||
| 22 | 0056602 | Sub 57042, Valve, Solenoid |
|
- | |||||
| NI | 0056533 | Tube Clamp |
|
- | |||||
| NI | Y0056525 | Screw |
|
- | |||||
| NI | Y0056611 | Dampener |
|
- | |||||
| NI | Y0056584 | Nut, Inlet Valve |
|
- | |||||
| NI | Y0056621 | Trim, Ice Cube Pan |
|
- | |||||
| NI | 56591 | Thermostat,low Limit |
|
- | |||||
| NI | 0056543 | Screw |
|
- | |||||
| NI | Y0056518 | Tube Clamp |
|
- | |||||
| NI | Y0056515 | Sub 56513, Screw |
|
- | |||||
| NI | 56609 | Manual,install/opera |
|
- | |||||
| NI | 0056573 | Tube Clamp |
|
- | |||||
| NI | 56524 | Assy Wiring Harness |
|
- | |||||
| NI | Y0311697 | Ice Cube Pan |
|
- | |||||
| NI | Y56620 | Manual,install/opera |
|
- | |||||
| NI | 0056705 | Sub 57165, Wiring Assy., Icema |
|
- | |||||
| NI | 0056623 | Insert, Plastic Tube |
|
- | |||||
| NI | Y0056601 | Tube Assy., Inlet Valve |
|
- | |||||
| NI | 0056647 | Tube, Water Inlet |
|
- | |||||
| NI | 0056592 | Nut And Sleeve Assy. |
|
- | |||||
| NI | 0056814 | Seal, Water Tube Fitting |
|
- | |||||
| NI | Y0311692 | Washer |
|
- |
