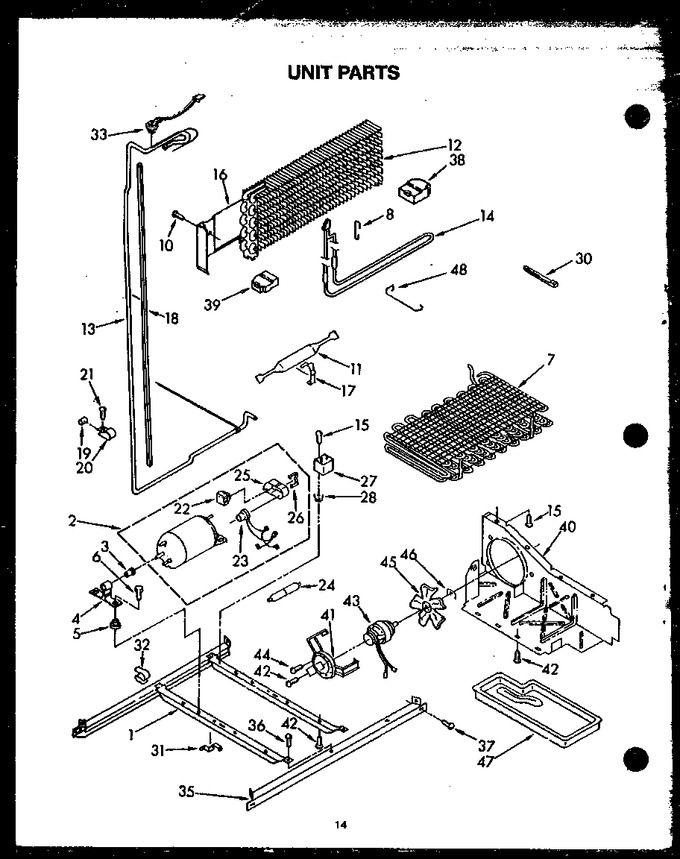

09 - Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y0312758 | Unit, Frame |
|
- | |||||
| 2 | 0312208 | Compressor |
|
- | |||||
| 3 | 312210 | Grommet, Compressor Bracket |
|
- | |||||
| 4 | Y0312211 | Bracket, Compressor Mounting |
|
- | |||||
| 5 | Y0056912 | Grommet |
|
- | |||||
| 6 | Y0312206 | Screw |
|
- | |||||
| 7 | Y0312759 | Condenser Assembly |
|
- | |||||
| 8 | Y0311156 | Support Heater |
|
- | |||||
| 10 | 56505 | Assy,wiring Harness |
|
- | |||||
| 11 | W10843121 | Drier (Replaces: Y0056708) |
|
Immediately | $ 47.31 | ||||
| 12 | 0056931 | Evaporator |
|
- | |||||
| 13 | 0312760 | Heat Exchanger |
|
- | |||||
| 14 | 0311164 | Defrost Heater |
|
- | |||||
| 15 | Y0311151 | Screw |
|
- | |||||
| 16 | Y0056796 | Heat Shield, Evaporator |
|
- | |||||
| 17 | Y56228 | Assy,lead-in Pipe |
|
- | |||||
| 18 | Y0056854 | Sleeve |
|
- | |||||
| 19 | Y0056574 | Dampener |
|
- | |||||
| 20 | 0056573 | Tube Clamp |
|
- | |||||
| 21 | Y0056514 | Sub 56525, Screw |
|
- | |||||
| 22 | 0056930 | Overload |
|
- | |||||
| 22 | 0312214 | Relay, Service Compressor |
|
- | |||||
| 23 | 0056930 | Overload |
|
- | |||||
| 24 | Y0312762 | Muffler |
|
- | |||||
| 25 | Y0312212 | Terminal Cover |
|
- | |||||
| 26 | Y0312213 | Strap, Cover |
|
- | |||||
| 27 | 0056908 | Capacitor |
|
- | |||||
| 28 | Y0056570 | Grommet |
|
- | |||||
| 30 | 56629 | Owners Manaul (he2250w) |
|
- | |||||
| 31 | Y0056589 | Clip |
|
- | |||||
| 32 | 56590 | Thermostat,cool-down |
|
- | |||||
| 33 | 0312750 | Bimetal, Defrost |
|
- | |||||
| 35 | Y0312761 | Unit Rail |
|
- | |||||
| 36 | Y0312207 | Screw |
|
- | |||||
| 37 | Y0056528 | Screw |
|
- | |||||
| 38 | Y0056932 | Support (right) |
|
- | |||||
| 39 | 0056933 | Support (left) |
|
- | |||||
| 40 | Y0312752 | Air Baffle |
|
- | |||||
| 41 | Y0056588 | Bracket, Fan Motor |
|
- | |||||
| 42 | 0056523 | Sub 56545, Screw |
|
- | |||||
| 43 | 833697 | Sub 56804, Motor, Fan (Replaces: Y0311168) |
|
Immediately | $ 79.34 | ||||
| 44 | 56539 | Buzzer,230/50 |
|
- | |||||
| 45 | Y0056730 | Fan Blade |
|
- | |||||
| 46 | Y0056506 | Speednut |
|
- | |||||
| 47 | Y0056790 | Sub 57068, Tray, Evaporator |
|
- | |||||
| 48 | Y0056802 | Guard, Fan |
|
- | |||||
| NI | Y0057043 | Kit, Evaporator Repair |
|
- |
