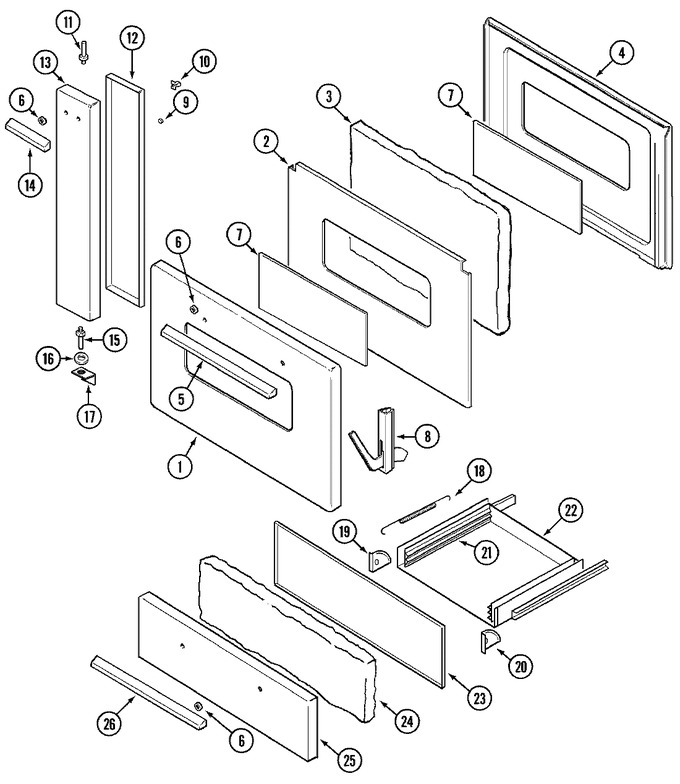

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11233072		Screw   (Replaces: Y707347)	10		Immediately	$ 12.62
1	72001085		Panel, Outer Door (wht)	10	Appelez-nous	-
2	72001086		Baffle, Door	10	Appelez-nous	-
3	72001087		Insulation, Door	10	Appelez-nous	-
4	72001088		Lining, Door	10	Appelez-nous	-
5	72001089		Handle, Door	10	Appelez-nous	-
5	WP3400074		Screw   (Replaces: 7101P068-60)	10			$ 6.47
6	8010P020-60		Spacer, Door Handle	10	Appelez-nous	-
7	72001090		Glass, Inner/outer	10	Appelez-nous	-
8	72001091		Hinge, Door	10	Appelez-nous	-
9	8003P004-60		Bumper, Rubber	10	Appelez-nous	-
10	72001028		Catch, Compartment Door	10	Appelez-nous	-
11	72001030		Pin, Upper Comp. Door Hinge	10	Appelez-nous	-
12	72001029		Lining, Compartment Door	10	Appelez-nous	-
13	72001016		Panel, Compartment Door (wht)	10	Appelez-nous	-
14	WP3400074		Screw   (Replaces: 7101P068-60)	10			$ 6.47
14	72001012		Handle, Compartment Door	10	Appelez-nous	-
15	72001018		Pin, Lower Comp. Door Hinge	10	Appelez-nous	-
15	7109P033-60		Lockwasher 1/4``	10	Appelez-nous	-
16	72001099		Spacer, Comp. Door Hinge	10	Appelez-nous	-
17	72001017		Bracket, Comp. Door Hinge	10	Appelez-nous	-
18	72001021		Spring, Broiler Drawer	10	Appelez-nous	-
19	72001031		Hinge, Broiler Drawer (lt)	10	Appelez-nous	-
20	72001032		Hinge, Broiler Drawer (rt)	10	Appelez-nous	-
20	7101P037-60		Screw, Stainless	10	Appelez-nous	-
21	72001036		Glide, Broiler Drawer	10	Appelez-nous	-
22	72001037		Drawer, Broiler	10	Appelez-nous	-
23	72001035		Lining, Broiler Drawer	10	Appelez-nous	-
24	72001042		Insulation, Broiler Drawer	10	Appelez-nous	-
25	72001034		Panel, Broiler Drawer (wht)	10	Appelez-nous	-
25	W11233072		Screw   (Replaces: Y707347)	10		Immediately	$ 12.62
26	72001038		Handle, Broiler Drawer	10	Appelez-nous	-
26	WP3400074		Screw   (Replaces: 7101P068-60)	10			$ 6.47

    View Diagram in Separate Window       Print Part List
