SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Door/drawer

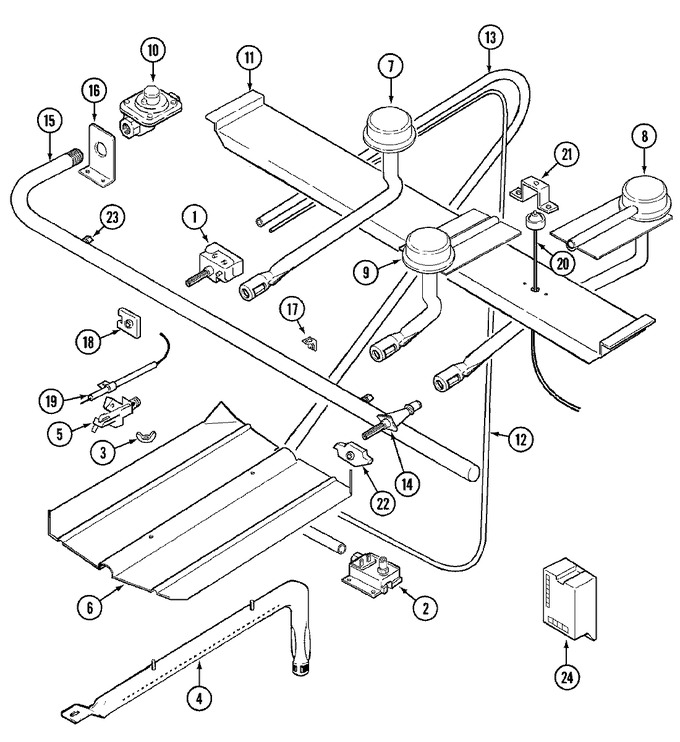

04 - Gas Controls
05 - Oven
06 - Top Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 72001102 | Thermostat, Oven | 10 |
|
- | ||||
| 1 | 7507P048-60 | Flange | 10 |
|
- | ||||
| 1 | 1555251 | Nut, Loxit (3/8``) | 10 |
|
- | ||||
| 1 | 1555222 | Nut, Loxit (3/16``) | 10 |
|
- | ||||
| 1 | 7101P241-60 | Screw | 10 |
|
- | ||||
| 2 | 72001104 | Valve, Oven | 10 |
|
- | ||||
| 2 | 7101P276-60 | Screw (blk) | 10 |
|
- | ||||
| 2 | 1555251 | Nut, Loxit (3/8``) | 10 |
|
- | ||||
| 3 | 7103P030-60 | Nut, Wing | 10 |
|
$ 6.37 | ||||
| 4 | 72001105 | Burner, Oven | 10 |
|
- | ||||
| 5 | 72001106 | Pilot, Oven Burner | 10 |
|
- | ||||
| 6 | 72001022 | Baffle, Oven Burner | 10 |
|
- | ||||
| 7 | 72001122 | Burner, Top (griddle) | 10 |
|
- | ||||
| 8 | 72001108 | Burner, Top (rear) | 10 |
|
- | ||||
| 9 | W11233072 | Screw (no.8ab) (Replaces: 71001183) | 10 |
|
Immediately | $ 12.62 | |||
| 9 | 72001109 | Burner, Top (front) | 10 |
|
- | ||||
| 10 | 72001110 | Regulator, Pressure | 10 |
|
- | ||||
| 11 | 72001111 | Bracket, Top Burner | 10 |
|
- | ||||
| 11 | 7101P276-60 | Screw (blk) | 10 |
|
- | ||||
| 12 | 0931201 | 3/16 X 80 Tubing | 10 |
|
- | ||||
| 13 | 12001100 | Kit, Tubing W/loxit (3/8``) | 10 |
|
- | ||||
| 14 | 72001157 | Valve, Top Burner | 10 |
|
- | ||||
| 15 | 72001113 | Pipe, Manifold | 10 |
|
- | ||||
| 16 | 72001096 | Bracket, Manifold Pipe | 10 |
|
- | ||||
| 17 | WP7112P004-60 | Clip, Thermostat (Replaces: 7112P004-60) | 10 |
|
Immediately | $ 11.07 | |||
| 18 | Y0S03005499 | Switch, Oven Igniter | 10 |
|
- | ||||
| 19 | 1430310 | Igniter Kit | 10 |
|
- | ||||
| 20 | 72001116 | Igniter, Top (rt) | 10 |
|
- | ||||
| 20 | 72001123 | Igniter, Top (griddle) | 10 |
|
- | ||||
| 20 | 72001115 | Igniter, Top (lt) | 10 |
|
- | ||||
| 21 | 72001063 | Ground Strap, Igniter | 10 |
|
- | ||||
| 22 | 72001118 | Switch, Igniter | 10 |
|
- | ||||
| 23 | 7507P047-60 | Plug, Pipe | 10 |
|
- | ||||
| 24 | 72001156 | Module, Spark | 10 |
|
- | ||||
| 25 | 72001073 | Wire, Brown | 10 |
|
- | ||||
| 25 | 72001071 | Wire, Black | 10 |
|
- | ||||
| 25 | 72001072 | Wire, Red | 10 |
|
- |
