SELECT A DIAGRAM

01 - Freezer Compartment


02 - Freezer Door


03 - Fresh Food Compartment


04 - Fresh Food Door


05 - Optional Ice Maker Kit


06 - Shelves & Accessories


07 - Unit Compartment & System

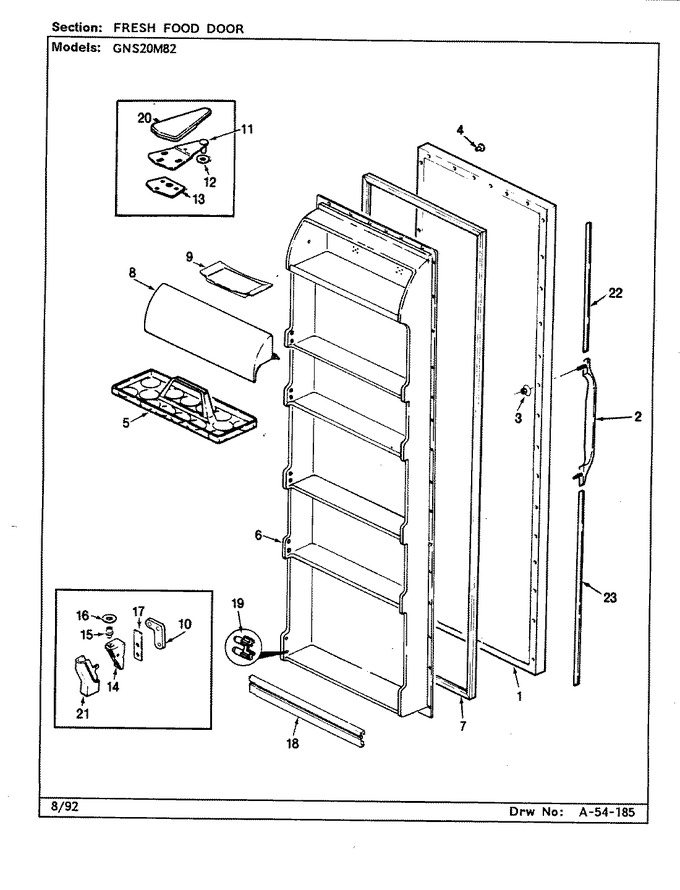

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	RA95060-1		Insulation Kit		Appelez-nous	-
1	69029-4-WW		Panel, F.f. Door (wht)		Appelez-nous	-
2	68656-3		Handle		Appelez-nous	-
3	434003-506		Fastener		Appelez-nous	-
4	29356-1		Retainer, Nameplate		Appelez-nous	-
5	60066-1		Tray, Egg		Appelez-nous	-
6	65275-5		Screw		Appelez-nous	-
6	65944-8		Liner, Door		Appelez-nous	-
7	66929-27		Gasket		Appelez-nous	-
8	69058-8		Door, Dairy		Appelez-nous	-
9	29936-2		Tray, Butter		Appelez-nous	-
10	67874-1		Tapping Plate, Lower Hinge		Appelez-nous	-
10	65275-59		Screw		Appelez-nous	-
11	53709-26		Hinge Upper		Appelez-nous	-
11	WP3-24838-048		Screw   (Replaces: 65275-52)				$ 7.00
12	WP52185-1		Washer   (Replaces: 52185-1)			Immediately	$ 9.47
13	65031-1		Shim, Upper Hinge		Appelez-nous	-
14	68975-2		Hinge, Lower		Appelez-nous	-
14	65275-51		Screw, Lower Hinge		Appelez-nous	-
15	68977-1		Pin, Hinge		Appelez-nous	-
16	67483-3		Washer, Lower Hinge   (Replaces: 67483-2)			Immediately	$ 45.86
17	69031-2		Shim		Appelez-nous	-
18	WP61003045		Trim, Shelf   (Replaces: 68832-49)				$ 129.55
19	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
20	65003-6		Cover, Upper Hinge (wht)		Appelez-nous	-
21	68978-1		Cover, Lower Hinge (blk)		Appelez-nous	-
22	68614-1		Trim		Appelez-nous	-
23	68614-2		Trim, Handle Extension (lower)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
