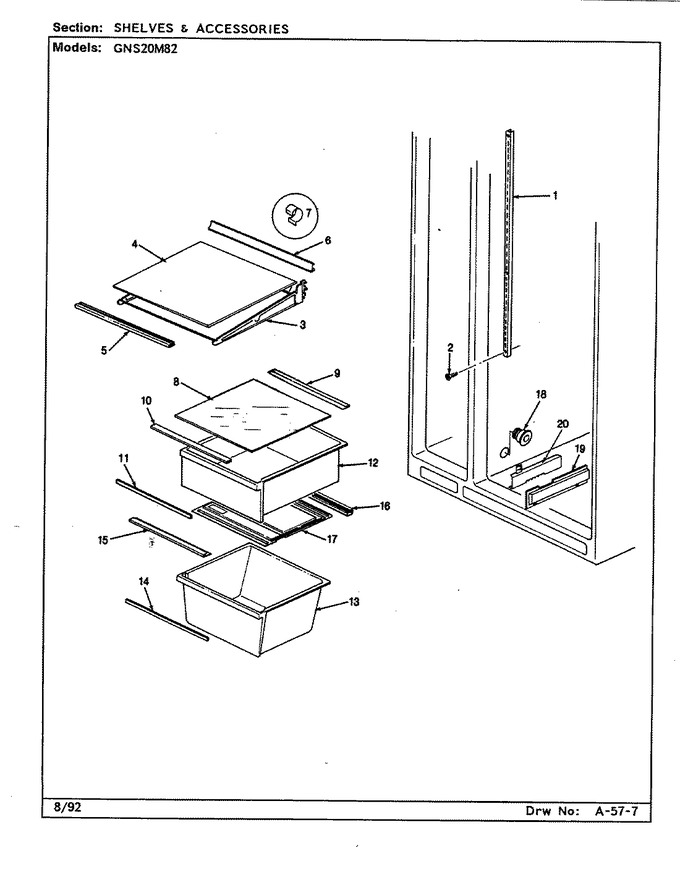

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	58381-4		Rail, Shelf Support		Appelez-nous	-
2	400037-28		Screw		Appelez-nous	-
3	65618-6		Frame, Shelf		Appelez-nous	-
4	68139-30		Glass, Cantilever Shelf		Appelez-nous	-
5	66649-9		Trim, Shelf		Appelez-nous	-
6	65276-47		Trim, Shelf		Appelez-nous	-
7	66333-1		Clip, Shelf Trim		Appelez-nous	-
8	65687-1		Shelf, Crisper (glass)		Appelez-nous	-
9	66092-1		Seal		Appelez-nous	-
10	66650-1		Trim		Appelez-nous	-
11	68124-93		Insert, Pan		Appelez-nous	-
12	66636-77		Pan, Crisper		Appelez-nous	-
13	66636-76		Pan, Meat		Appelez-nous	-
14	68124-93		Insert, Pan		Appelez-nous	-
15	65648-1		Seal, Meat Pan (front)		Appelez-nous	-
16	65649-1		Seal, Meat Pan (rear)		Appelez-nous	-
17	65608-3		Cover, Meat Pan		Appelez-nous	-
18	53726-2		Tunnel, Air (meat)		Appelez-nous	-
19	56686-5		Clip, Secondary Seal		Appelez-nous	-
19	65737-2		Control Housing		Appelez-nous	-
20	65736-1		Slide Control, (meat)		Appelez-nous	-
