SELECT A DIAGRAM

01 - Oven, Literature

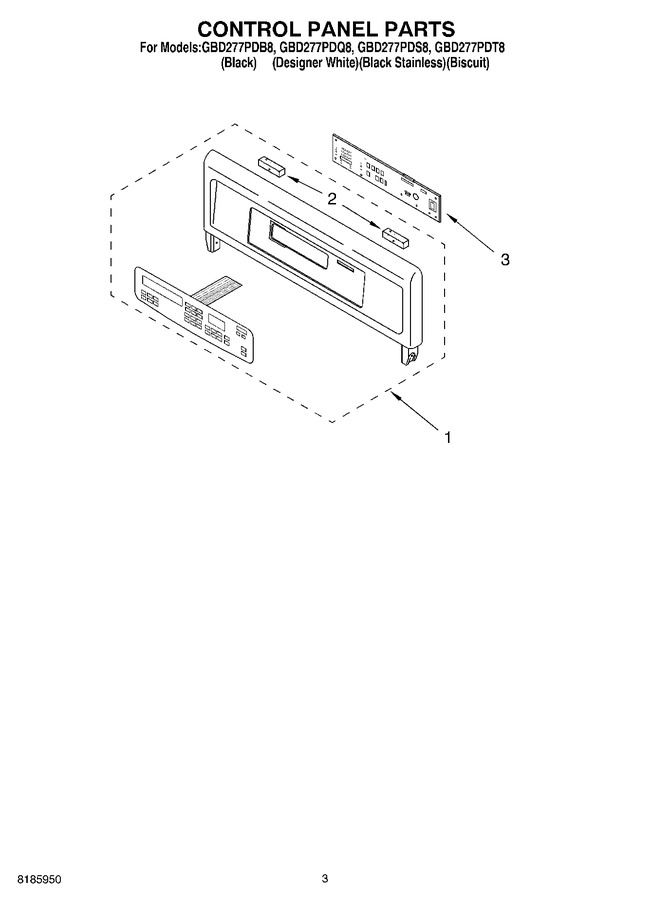

02 - Control Panel


03 - Oven Door


04 - Internal Oven


05 - Top Venting, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8300433		Control Panel Assy. W/membrane, Switch (black Model)				$ 218.85
1	8300434		Control Panel Assy. W/membrane, Switch (white Model)				$ 0.01
1	8300443		Control Panel Assy. W/membrane, Switch (biscuit Model)		Appelez-nous	-
1	3192690		Control Panel Assy. W/membrane, Switch (insulator, Membrane Switch)		Appelez-nous	-
1	WP3400832		Control Panel Assy. W/membrane Switch (screw)   (Replaces: 8281179)			Immediately	$ 6.98
2	4451033		Gasket, Control Panel		Appelez-nous	-
3	4452890		Microcomputer		Appelez-nous	-
3	WP4449745		Screw   (Replaces: 4449745)				$ 6.74
3	WP3400832		Screw   (Replaces: 3400832)			Immediately	$ 6.98

    View Diagram in Separate Window       Print Part List
