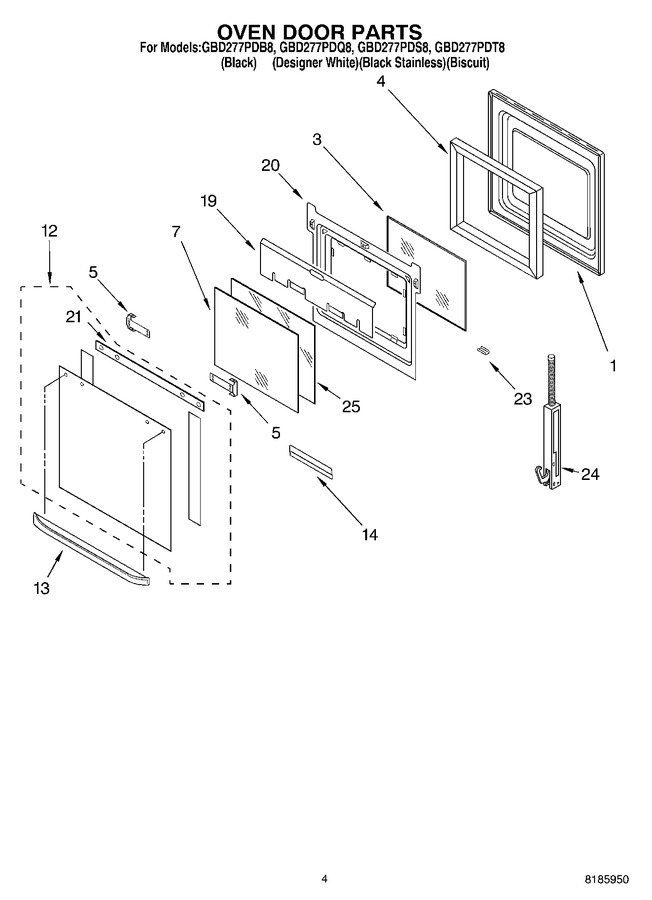

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4455617 | Door Liner |
|
- | |||||
| 3 | WP4449253 | Glass, Inner (Replaces: 4449253) |
|
$ 151.75 | |||||
| 4 | 4451721 | Insulation, Door |
|
$ 37.62 | |||||
| 5 | WP3400832 | Screw (Replaces: 3400832) |
|
Immediately | $ 6.98 | ||||
| 5 | W10276642 | Screw (Replaces: 4451040) |
|
$ 5.49 | |||||
| 5 | 4450813 | Bracket, Handle |
|
$ 24.20 | |||||
| 7 | WP4449257 | Glass, Inner (Replaces: 4449257) |
|
Immediately | $ 178.55 | ||||
| 12 | 4452063 | Door Glass, Assy (white Model) |
|
- | |||||
| 12 | 4452478 | Door Glass, Assy (black, Stainless Model) |
|
- | |||||
| 12 | 8300904 | Door Glass Assy (biscuit) |
|
- | |||||
| 12 | 4452062 | Door Glass Assy (black Model) |
|
- | |||||
| 13 | 8300255 | Door Handle (biscuit Model) |
|
- | |||||
| 13 | 4448406 | Handle, Door (white Model) |
|
- | |||||
| 13 | 4448405 | Door Handle (black Model) |
|
- | |||||
| 14 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.47 | ||||
| 14 | 4451668 | Retainer, Glass |
|
- | |||||
| 19 | 4450361 | Shield, Heat |
|
- | |||||
| 19 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.47 | ||||
| 20 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.47 | ||||
| 20 | 8300777 | Retainer, Glass |
|
- | |||||
| 21 | 8300819 | Seal, Door Top |
|
- | |||||
| 23 | 4452119 | Retainer, Clip (biscuit Model) |
|
- | |||||
| 23 | 4450864 | Retainer, Clip (white Model) |
|
- | |||||
| 23 | 4450863 | Retainer, Clip (black Model) |
|
- | |||||
| 23 | WP3400832 | Retainer, Clip (screw) (Replaces: 3400832) |
|
Immediately | $ 6.98 | ||||
| 24 | 9760570 | Hinge, Door White, Black & Biscuit Models (left Hand Black Stainless Model) (Replaces: 8300570) |
|
$ 100.91 | |||||
| 24 | WP9760572 | Hinge, Door White, Black & Biscuit Models (left Hand) (Replaces: 8300572) |
|
$ 95.97 | |||||
| 24 | WP4449743 | Hinge, Door (white, Black & Biscuit Models) (screw) (Replaces: 4449743) |
|
$ 6.47 | |||||
| 24 | 9760569 | Hinge, Door (white, Black & Biscuit Models) (right Side) (Replaces: 8300569) |
|
$ 101.50 | |||||
| 24 | WP9760571 | Hinge, Door White, Black & Biscuit Models (right Hand) (Replaces: 8300571) |
|
Immediately | $ 98.15 | ||||
| 25 | 4455256 | Glass, Inner |
|
- |
