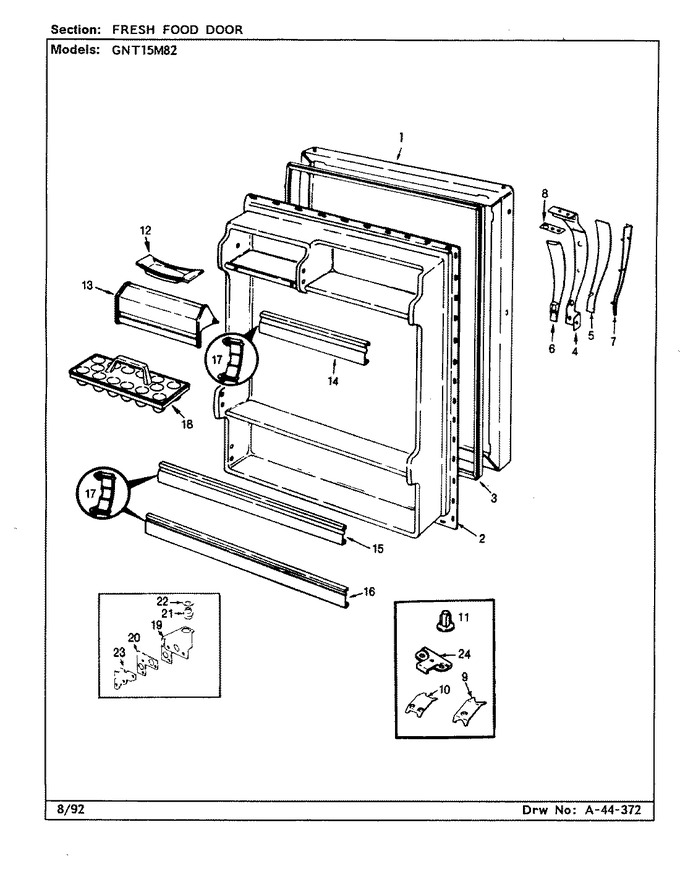

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	68469-1-WW		Panel, F.f. Door (wht)		Appelez-nous	-
1	RA95056-1		Door Insulation Kit		Appelez-nous	-
2	65935-14		Liner, F.f. Door		Appelez-nous	-
2	65275-5		Screw		Appelez-nous	-
3	66199-2		Gasket, Door		Appelez-nous	-
4	65275-57		Screw		Appelez-nous	-
4	66255-2		Door Handle		Appelez-nous	-
5	68036-3		Insert (wht)		Appelez-nous	-
6	60580-5		Insert		Appelez-nous	-
6	65275-53		Screw		Appelez-nous	-
7	68048-4		Insert, Vinyl		Appelez-nous	-
8	69835-1		Shim, Handle		Appelez-nous	-
8	68776-1		Shim Handle----na		Appelez-nous	-
9	56209-3		Clip, Stop Screw		Appelez-nous	-
10	60123-2		Clip, Stop Screw		Appelez-nous	-
11	55782-10		Plug Button, Hdle & Door Stop		Appelez-nous	-
12	29936-2		Tray, Butter		Appelez-nous	-
13	69058-2		Door, Dairy		Appelez-nous	-
14	68832-45		Trim		Appelez-nous	-
15	WP61003045		Trim   (Replaces: 68832-59)				$ 129.55
16	WP61003045		Trim   (Replaces: 68832-44)				$ 129.55
17	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
18	60066-1		Tray, Egg		Appelez-nous	-
19	67714-11		Hinge, Lower		Appelez-nous	-
19	403100-1		Screw		Appelez-nous	-
20	60626-1		Shim, Lower Hinge		Appelez-nous	-
21	68788-1		Hinge Pin		Appelez-nous	-
22	67483-3		Washer, Lower Hinge   (Replaces: 67483-2)			Immediately	$ 45.86
23	65790-3		Tapping Plate		Appelez-nous	-
23	403100-1		Screw		Appelez-nous	-
24	65275-48		Screw		Appelez-nous	-
24	68987-1		Stop, Door		Appelez-nous	-
