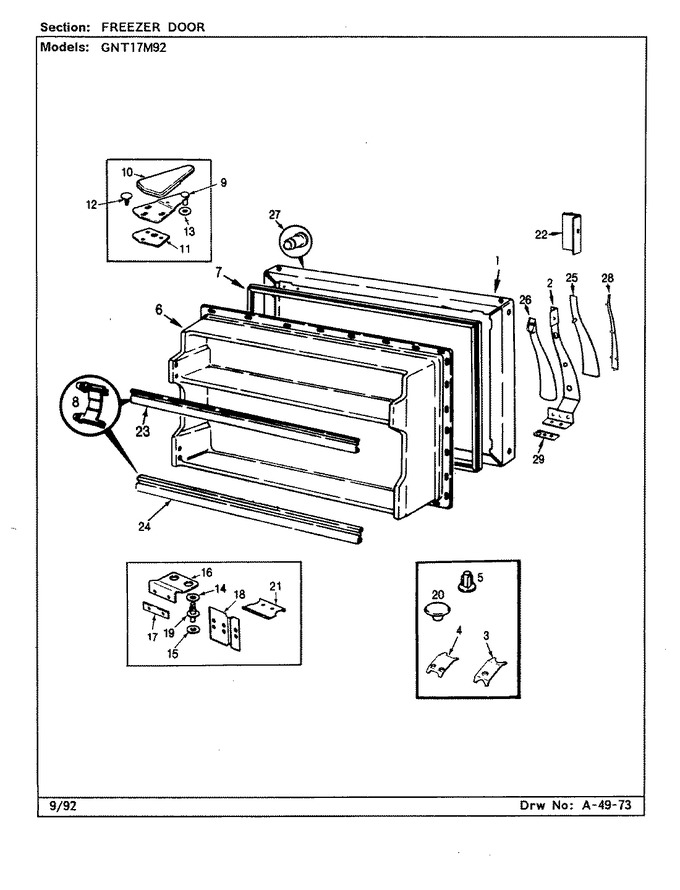

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	68472-4-WW		Panel, Frz. Door (wht)		Appelez-nous	-
1	RA95056-1		Door Insulation Kit		Appelez-nous	-
2	65275-57		Screw		Appelez-nous	-
2	66255-1		Door Handle		Appelez-nous	-
3	56209-3		Clip, Stop Screw		Appelez-nous	-
4	60123-2		Clip, Stop Screw		Appelez-nous	-
5	55782-10		Plug Button, Hdle & Door Stop		Appelez-nous	-
6	65929-5		Liner, Frz. Door		Appelez-nous	-
6	65275-5		Screw		Appelez-nous	-
7	66199-3		Gasket, Door		Appelez-nous	-
8	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
9	53709-24		Hinge, Upper		Appelez-nous	-
9	WP3-24838-048		Screw   (Replaces: 65275-52)				$ 7.00
10	65003-6		Cover, Upper Hinge (wht)		Appelez-nous	-
11	65031-1		Shim, Upper Hinge		Appelez-nous	-
12	56144-13		Plug Button, Upper Hinge (wht)		Appelez-nous	-
13	54233-1		Washer				$ 7.71
14	67483-1		Washer, Center Hinge (upper)		Appelez-nous	-
15	54233-2		Washer		Appelez-nous	-
16	68811-3		Hinge, Center		Appelez-nous	-
16	65275-55		Screw		Appelez-nous	-
17	68812-1		Shim, Center Hinge		Appelez-nous	-
18	68377-1		Tapping Plate, Center Hinge		Appelez-nous	-
19	67322-1		Pin, Center Hinge		Appelez-nous	-
20	67634-2		Plug Button, Hinge Cup (wht)		Appelez-nous	-
21	65275-48		Screw		Appelez-nous	-
21	68988-1		Stop, Door		Appelez-nous	-
22	60453-42		Trim, Handle Ext		Appelez-nous	-
23	WP61003045		Trim   (Replaces: 68832-59)				$ 129.55
24	68832-60		Trim, Shelf (22``)		Appelez-nous	-
25	68036-3		Insert (wht)		Appelez-nous	-
26	60580-5		Insert		Appelez-nous	-
27	29356-1		Retainer, Nameplate		Appelez-nous	-
28	68048-4		Insert, Vinyl		Appelez-nous	-
29	68776-1		Shim Handle----na		Appelez-nous	-
29	65275-53		Screw		Appelez-nous	-
29	69835-1		Shim, Handle		Appelez-nous	-
