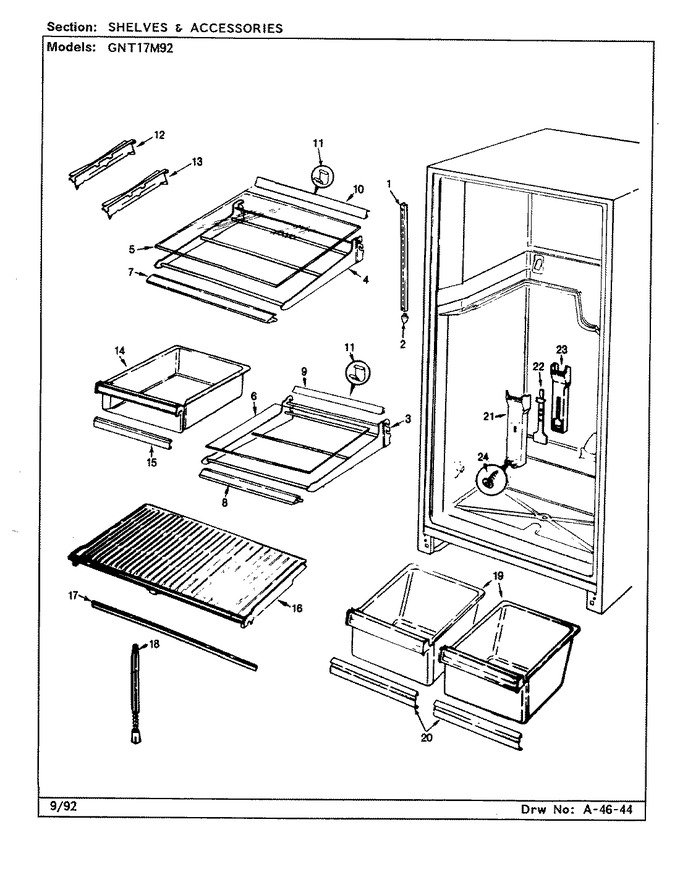

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	60096-7		Rail, Shelf Support (lt)		Appelez-nous	-
1	60096-8		Rail, Shelf Support (rt)		Appelez-nous	-
1	60096-9		Rail, Shelf Support (center)		Appelez-nous	-
1	400037-28		Screw		Appelez-nous	-
2	60340-1		End Cap, Center Rail		Appelez-nous	-
3	60570-49		Frame, Shelf		Appelez-nous	-
4	60570-36		Frame, Shelf		Appelez-nous	-
5	68139-15		Glass, Split Shelf		Appelez-nous	-
5	68139-21		Glass, Meat Shelf		Appelez-nous	-
6	68139-20		Glass, Split Shelf		Appelez-nous	-
7	60414-80		Trim, Split Shelf		Appelez-nous	-
8	60414-82		Trim, Shelf (front)		Appelez-nous	-
9	65276-48		Trim, Split		Appelez-nous	-
10	65276-41		Trim Shelf		Appelez-nous	-
11	66333-1		Clip, Shelf Trim		Appelez-nous	-
12	66813-1		Rail, Meat Pan (lt)		Appelez-nous	-
13	66814-1		Rail, Meat Pan (rt)		Appelez-nous	-
14	66517-5		Pan, Meat		Appelez-nous	-
15	60132-116		Insert		Appelez-nous	-
16	66644-2		Shelf, Crisper		Appelez-nous	-
17	60454-1		Trim		Appelez-nous	-
18	12001957		Support, Crisper Shelf   (Replaces: 66105-4)				$ 3.35
19	68221-535		Pan, Crisper (vegetable)		Appelez-nous	-
19	68221-533		Pan, Crisper (fruit)		Appelez-nous	-
20	60132-119		Trim, Shelf		Appelez-nous	-
21	69828-1		Seal, Meat Air Tunnel		Appelez-nous	-
21	60094-12		Tunnel		Appelez-nous	-
22	60093-2		Damper, Air Tunnel		Appelez-nous	-
23	60092-1		Foam Insulator, Air Tunnel		Appelez-nous	-
24	W11233072		Screw   (Replaces: 400015-31)			Immediately	$ 12.62
