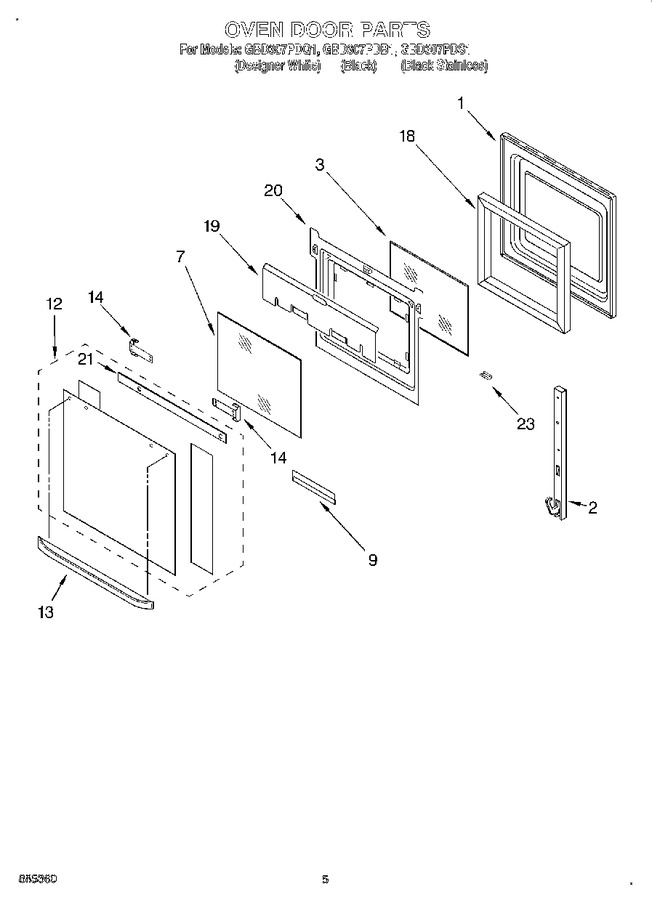

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4451719		Door Liner		Appelez-nous	-
2	WP4449743		Hinge, Door (screw)   (Replaces: 4449743)				$ 6.47
2	WP4455525		Hinge, Door (black Stainless Model)   (Replaces: 4454948)			Immediately	$ 69.96
2	WP4455524		Hinge, Door (white & Black Models)   (Replaces: 4454947)			Immediately	$ 61.08
3	WP4449259		Glass, Inner   (Replaces: 4449259)				$ 182.86
7	WP4449263		Glass, Inner   (Replaces: 4449263)			Immediately	$ 151.10
9	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
9	4451668		Retainer, Glass		Appelez-nous	-
12	4452066		Door Glass Assy (white)		Appelez-nous	-
12	WP9759074		Door Glass Assy (black Stainless)   (Replaces: 4452479)				$ 376.41
12	4452065		Door Glass Assy (black)		Appelez-nous	-
13	4448855		Door Handle (white)		Appelez-nous	-
13	4448854		Door Handle (black)				$ 74.07
14	W10276642		Screw   (Replaces: 4451040)				$ 5.49
14	4450813		Bracket, Handle				$ 24.20
18	WP4451722		Insulation, Door   (Replaces: 4451722)				$ 162.66
19	4450362		Shield, Heat		Appelez-nous	-
19	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
20	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
20	4451671		Retainer, Glass		Appelez-nous	-
21	4451674		Seal, Door Top		Appelez-nous	-
23	4450864		Retainer, Clip (white)		Appelez-nous	-
23	4450863		Retainer, Clip (black)		Appelez-nous	-
