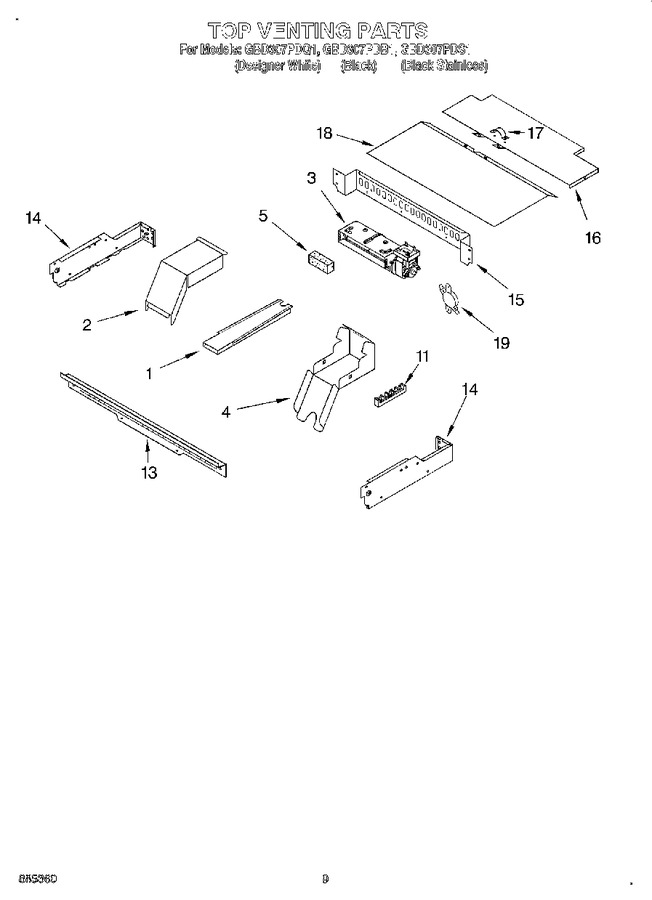

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4451759		Vent, Exhaust				$ 90.01
2	4455178		Elbow, Vent-top   (Replaces: 4451438)				$ 13.30
3	WPW10016550		Blower   (Replaces: 4451744)			Immediately	$ 255.27
4	4455177		Elbow, Vent Bottom   (Replaces: 4451752)				$ 9.77
5	W10491987		Block, Foam   (Replaces: 4451758)			Immediately	$ 6.98
11	WP3387230		Screw   (Replaces: 3196181)			Immediately	$ 7.69
11	WP8203546		Block, Terminal   (Replaces: 4449868)			Immediately	$ 27.12
13	4448549		Vent, Control Panel		Appelez-nous	-
13	WP4450038		Screw   (Replaces: 4450038)				$ 6.84
14	WP4449154		Side, Control Top (screw)   (Replaces: 4449154)				$ 6.80
14	W10790240		Side, Control Top (left)   (Replaces: 4451598)				$ 67.21
14	W10755214		Side, Control Top (right)   (Replaces: 4451597)		Appelez-nous	-
14	WP4449809		Side, Control Top (screw)   (Replaces: 4449809)			Immediately	$ 6.47
15	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
15	4452244		Back, Control		Appelez-nous	-
16	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
16	4450551		Cover, Top Rear		Appelez-nous	-
17	4448664		Clamp				$ 18.35
17	WP112432		Nut   (Replaces: 112432)				$ 7.16
17	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
18	WP4452367		Cover, Top Front   (Replaces: 4450554)				$ 68.53
18	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
19	WP4448950		Screw, Install (4)   (Replaces: 4448950)				$ 6.80
19	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
19	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
19	4451761		Support, Wiring		Appelez-nous	-
19	WPW10339879		Tie, Cable   (Replaces: 4454842)				$ 7.11
19	814381		Pin Hinge Kit				$ 7.73
19	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
19	WP9759242		Thermostat, Oven Temperature Spst   (Replaces: 4452223)			Immediately	$ 77.01
19	WP261869		Paint, Touch-up (1/2oz.) (cord Brown)   (Replaces: 261869)				$ 23.85
19	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
19	261900		Citrine White				$ 51.34
19	285006		Spray Paint (black) 13 Oz.   (Replaces: 830864)			Immediately	$ 51.34
19	591014		Adhesive Loctite (1/3 Oz.)		Appelez-nous	-
19	WP482338		Sealer, Silastic (3 Oz.)   (Replaces: 482338)			Immediately	$ 57.16
19	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
19	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
19	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
19	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
19	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
19	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
19	242829		Wire (12 Ga. 150 C Red)		Appelez-nous	-
19	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
19	242831		Wire (14 Ga. 200 C Red)				$ 342.23
19	242826		Wire (14 Ga. 150 C White)		Appelez-nous	-
19	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
19	242832		Wire (14 Ga. 200 C Yellow)		Appelez-nous	-
19	4452239		Harness, Wire (latch, Lower)		Appelez-nous	-
19	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
19	4454922		Harness, Wire (main)		Appelez-nous	-
19	4450953		Conduit, Double				$ 311.24
19	4450800		Screw				$ 11.55
19	4448664		Clamp				$ 18.35
19	WP112432		Nut   (Replaces: 112432)				$ 7.16
19	WP4451042		Fuse Assy (service Only)   (Replaces: 4450814)			Immediately	$ 32.72
19	4452222		Spacer, Harness		Appelez-nous	-
19	WPW10339879		Tie, Cable   (Replaces: 4454835)				$ 7.11
