SELECT A DIAGRAM

01 - Freezer Compartment


02 - Freezer Door


03 - Fresh Food Compartment


04 - Fresh Food Door


05 - Ice & Water Dispenser


06 - Ice Maker & Bin


07 - Shelves & Accessories


08 - Unit Compartment & System

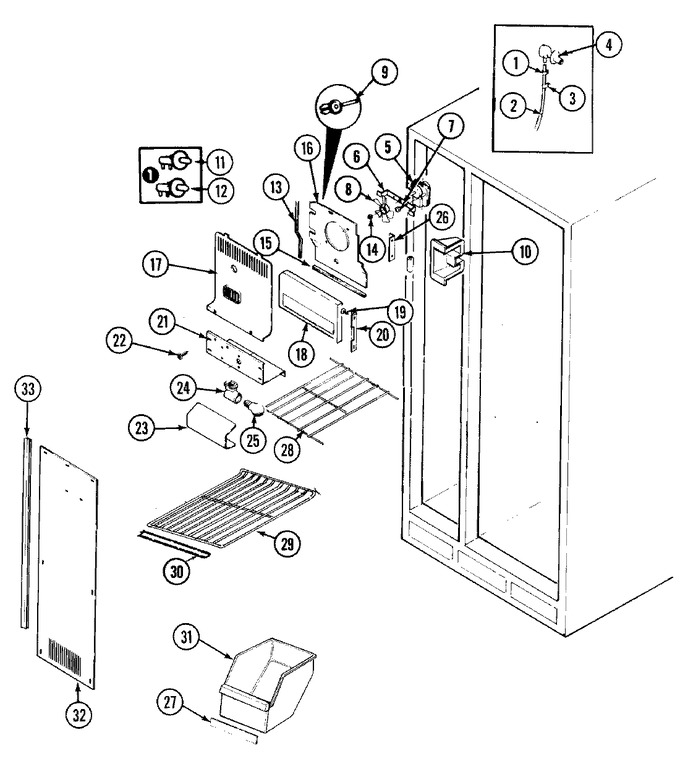

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPM0114003		Clamp, Spring   (Replaces: 60333-4)				$ 9.95
2	WPB5705307		Tubing, Valve To Grommet   (Replaces: 67579-2)				$ 11.19
3	65517-1		Clip		Appelez-nous	-
4	68307-2		Grommet, Water Entry		Appelez-nous	-
5	69298-2		Motor, Fan		Appelez-nous	-
5	69593-1		Wire Harness, Frz. Adapter		Appelez-nous	-
6	64856-1		Bracket, Fan Motor		Appelez-nous	-
7	WP488729		Screw   (Replaces: 9986-45)			Immediately	$ 7.01
8	52120-4		Blade, Evaporator Fan		Appelez-nous	-
9	22715-6		Rivet		Appelez-nous	-
10	67353-1		Shield, Air Directional		Appelez-nous	-
11	ES18809		Switch   (Replaces: 56432-1)				$ 11.30
12	68916-1		Light Switch		Appelez-nous	-
13	66325-21		Seal (44``)		Appelez-nous	-
14	420092-900		Washer, Spring		Appelez-nous	-
15	68946-4		Seal		Appelez-nous	-
16	68550-1		Upper Cover		Appelez-nous	-
17	67225-1		Shield, Fan		Appelez-nous	-
18	69874-5		Front Assy, I/m Sxs		Appelez-nous	-
18	60313-1		Cup, Shelf		Appelez-nous	-
19	400026-1		Screw		Appelez-nous	-
20	68621-1		Spacer		Appelez-nous	-
20	W11772394		Screw   (Replaces: 400021-1)			Immediately	$ 10.94
20	68572-1		Latch		Appelez-nous	-
21	67296-2		Box, Auger Motor		Appelez-nous	-
22	400015-12		Screw		Appelez-nous	-
23	67292-1		Shield, Light		Appelez-nous	-
24	68974-3		Receptacle, Bulb		Appelez-nous	-
25	WP67002552		Bulb, Light (40w-230v)   (Replaces: 24082-1)			Immediately	$ 10.58
26	53727-1		Retainer, Air Tunnel		Appelez-nous	-
26	26527-11		Tube, Drain		Appelez-nous	-
26	67288-1		Bracket, Mounting		Appelez-nous	-
26	52526-1		Grommet		Appelez-nous	-
26	67685-1		Retainer		Appelez-nous	-
27	68124-94		Insert, Pan Handle		Appelez-nous	-
28	67466-1		Cup, Shelf		Appelez-nous	-
28	68630-5		Shelf, Dispenser		Appelez-nous	-
29	66603-42		Shelf, 2,3, & 4		Appelez-nous	-
30	66649-8		Trim, Shelf		Appelez-nous	-
31	66636-87		Pan, Frz.		Appelez-nous	-
32	67335-4		Cover, Coil (lower)		Appelez-nous	-
33	400015-12		Screw		Appelez-nous	-
33	W11772394		Screw   (Replaces: 400021-1)			Immediately	$ 10.94
33	67562-1		Coil Cover, Gasket		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
