SELECT A DIAGRAM

01 - Freezer Compartment


02 - Freezer Door


03 - Fresh Food Compartment


04 - Fresh Food Door


05 - Ice & Water Dispenser


06 - Ice Maker & Bin


07 - Shelves & Accessories


08 - Unit Compartment & System

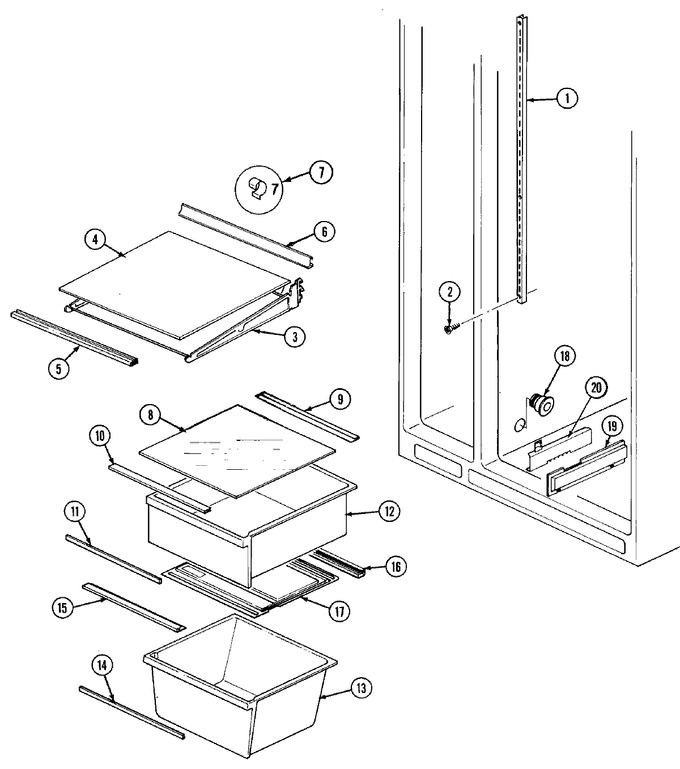

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67311-1		Rail, Shelf Support		Appelez-nous	-
2	400037-28		Screw		Appelez-nous	-
3	65618-6		Frame, Shelf		Appelez-nous	-
4	68139-30		Glass, Cantilever Shelf		Appelez-nous	-
5	66649-9		Trim, Shelf		Appelez-nous	-
6	65276-55		Trim, Shelf		Appelez-nous	-
7	66333-1		Clip, Shelf Trim		Appelez-nous	-
8	68139-31		Shelf, Crisper (glass)		Appelez-nous	-
9	68157-1		Seal, Crisper Pan (rear)		Appelez-nous	-
10	66650-1		Trim		Appelez-nous	-
11	68124-95		Insert, Pan Handle		Appelez-nous	-
12	66636-89		Pan, Crisper		Appelez-nous	-
13	66636-88		Pan, Meat		Appelez-nous	-
14	68124-95		Insert, Pan Handle		Appelez-nous	-
15	65648-1		Seal, Meat Pan (front)		Appelez-nous	-
16	65649-1		Seal, Meat Pan (rear)		Appelez-nous	-
17	65608-5		Cover, Meat Pan		Appelez-nous	-
18	53726-2		Tunnel, Air (meat)		Appelez-nous	-
19	65737-2		Control Housing		Appelez-nous	-
20	56686-4		Clip		Appelez-nous	-
20	65736-1		Slide Control, (meat)		Appelez-nous	-
