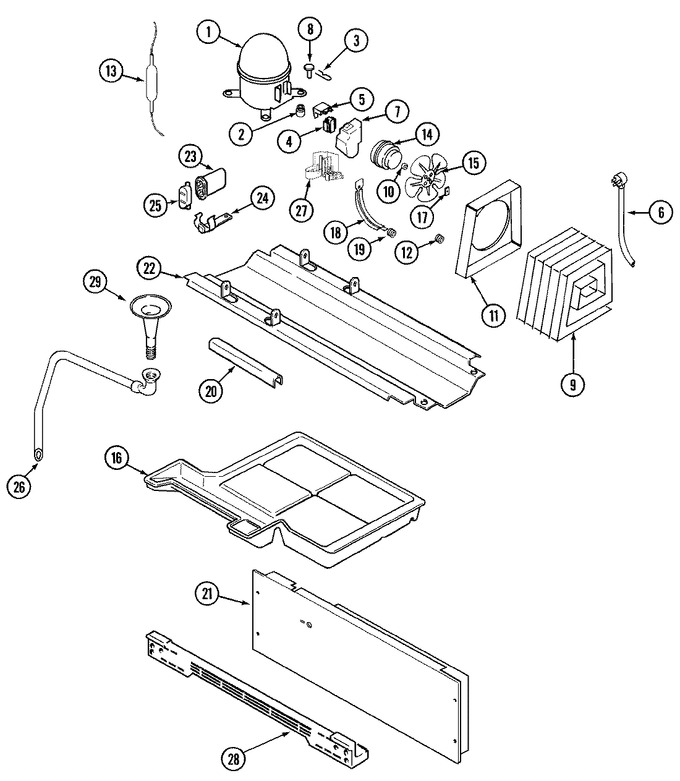

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 61002097 | Wire Harness, Compressor | 11 |
|
- | ||||
| 1 | 12001487 | Compressor Assy. (r134a-220v) | 11 |
|
- | ||||
| 2 | 17245-4 | Grommet, Compressor | 11 |
|
- | ||||
| 3 | 61003099 | Clip, Compressor | 11 |
|
- | ||||
| 4 | 61001832 | Relay, Start | 11 |
|
- | ||||
| 5 | 61003111 | Overload | 11 |
|
- | ||||
| 6 | 61001835 | Cord, Power (europe) | 11 |
|
- | ||||
| 7 | 61002083 | Cover, Terminal | 11 |
|
- | ||||
| 8 | 52656-2 | Plug, Compressor | 11 |
|
- | ||||
| 9 | 61003130 | Condenser | 11 |
|
- | ||||
| 9 | WP489399 | Screw (Replaces: 61001885) | 11 |
|
$ 6.26 | ||||
| 10 | 61001686 | Washer, Fan Blade | 11 |
|
- | ||||
| 11 | 61001941 | Shroud, Condenser | 11 |
|
- | ||||
| 12 | 61002033 | Grommet, Condenser Tubing | 11 |
|
- | ||||
| 13 | WPW10143759 | Drier (Replaces: 13900-1) | 11 |
|
Immediately | $ 27.70 | |||
| 14 | 65275-33 | Screw | 11 |
|
- | ||||
| 14 | 61002084 | Motor, Condenser Fan | 11 |
|
- | ||||
| 15 | WP12587601 | Blade, Condenser Fan (Replaces: 60683-1) | 11 |
|
$ 114.00 | ||||
| 16 | 65275-5 | Screw | 11 |
|
- | ||||
| 16 | 61002649 | Pan, Drain | 11 |
|
- | ||||
| 17 | WP486692 | Clip, Fan Blade (Replaces: 19914) | 11 |
|
$ 7.04 | ||||
| 18 | 61001414 | Bracket, Fan Motor | 11 |
|
- | ||||
| 19 | 56933-1 | Grommet, Bracket | 11 |
|
- | ||||
| 20 | 61001974 | Isolator, Condenser | 11 |
|
- | ||||
| 21 | 61003596 | Cover, Compressor Compartment | 11 |
|
- | ||||
| 21 | 65275-5 | Screw | 11 |
|
- | ||||
| 22 | WP67006715 | Screw (Replaces: 61002407) | 11 |
|
$ 6.47 | ||||
| 22 | 61003132 | Pan, Compressor Mtg. | 11 |
|
- | ||||
| 23 | 61001827 | Capacitor, Run | 11 |
|
- | ||||
| 24 | 61001830 | Bracket, Run Capacitor | 11 |
|
- | ||||
| 24 | WP489478 | Screw (Replaces: 400017-1) | 11 |
|
$ 6.98 | ||||
| 25 | 61001831 | Cover, Capacitor Terminal | 11 |
|
- | ||||
| 26 | 53516-9 | Clamp | 11 |
|
- | ||||
| 26 | 61003133 | Hose, Drain | 11 |
|
$ 56.20 | ||||
| 27 | 61003112 | Box, Terminal | 11 |
|
- | ||||
| 28 | WP8281227 | Screw (Replaces: 61004096) | 11 |
|
$ 9.40 | ||||
| 28 | 61004305 | Kickplate (alm) | 11 |
|
- | ||||
| 29 | 61004281 | Manual, Use & Care | 11 |
|
- |
