SELECT A DIAGRAM

01 - Compressor


02 - Controls


03 - Freezer Compartment


04 - Freezer Inner Door


05 - Freezer Outer Door


06 - Fresh Food Inner Door


07 - Fresh Food Outer Door


08 - Shelves & Accessories


09 - Wiring Information

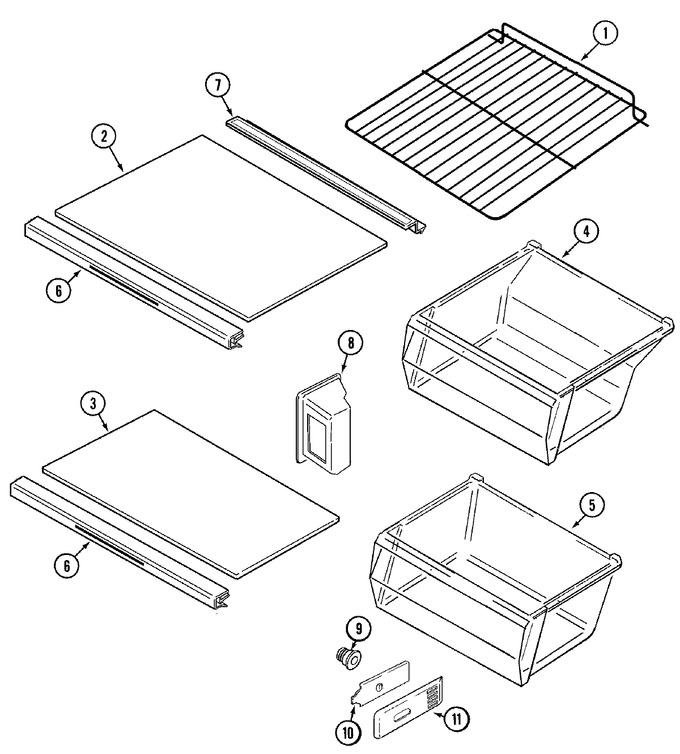

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	61003156		Shelf, Slide-out	11	Appelez-nous	-
2	61003160		Glass, Crisper Shelf	11	Appelez-nous	-
3	61003157		Glass, Meat Shelf	11	Appelez-nous	-
4	61003543		Pan, Crisper	11	Appelez-nous	-
5	61003544		Pan, Meat	11	Appelez-nous	-
6	61003162		Trim	11	Appelez-nous	-
7	61003161		Seal, Crisper Shelf (rear)	11	Appelez-nous	-
8	WP61006081		Cover Assy., Air Return   (Replaces: 61003164)	11			$ 80.27
9	61002014		Leg, Leveling	11	Appelez-nous	-
9	69810-1		Cap, Leveling Leg	11	Appelez-nous	-
10	W11233072		Screw   (Replaces: 400016-1)	11		Immediately	$ 12.62
10	61003163		Wheel Assy. (frt)	11	Appelez-nous	-
11	WP61003826		Wheel (rear)   (Replaces: 61002103)	11			$ 6.71
12	61002104		Pin, Wheel	11			$ 5.70
13	53726-2		Tunnel, Air (meat)	11	Appelez-nous	-
14	61003249		Slide, Control (meat)	11	Appelez-nous	-
15	61003250		Retainer, Control Slide	11	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
