SELECT A DIAGRAM

01 - Oven

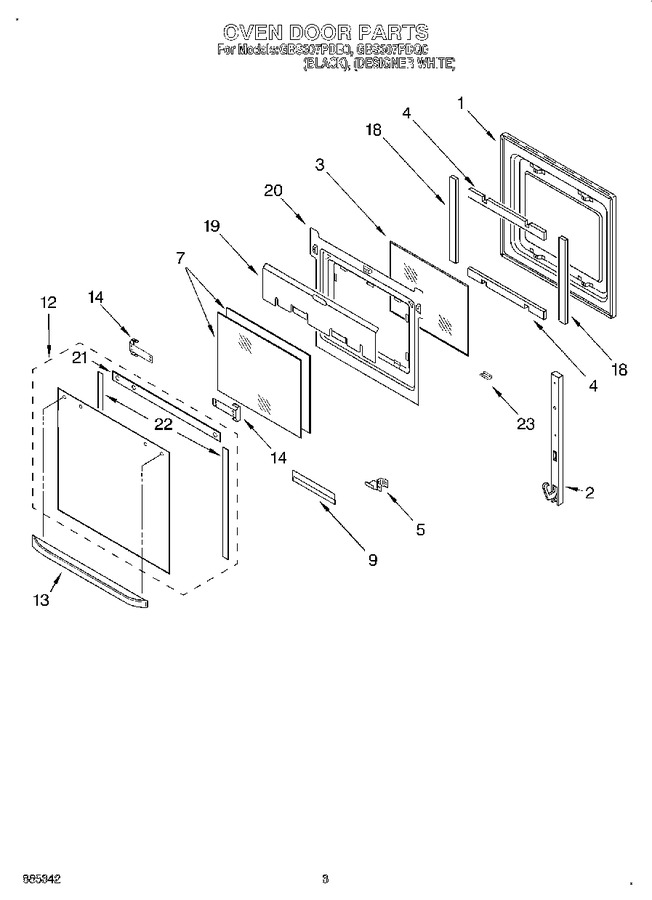

02 - Oven Door


03 - Internal Oven


04 - Control Panel, Literature


05 - Top Venting, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4450429		Door Liner		Appelez-nous	-
2	WP4455525		Hinge, Door   (Replaces: 4451174)			Immediately	$ 69.96
2	WP4449743		Screw   (Replaces: 4449743)				$ 6.47
3	WP4449259		Glass, Inner   (Replaces: 4449259)				$ 182.86
4	4448680		Insulation, Top And Bottom Door		Appelez-nous	-
5	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
5	4450470		Retainer, Glass		Appelez-nous	-
7	WP4449263		Glass, Inner (2)   (Replaces: 4449263)			Immediately	$ 151.10
9	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
9	4449031		Retainer, Glass		Appelez-nous	-
12	4450691		Door Glass, Outer (black Model)		Appelez-nous	-
12	4450692		Door Glass, Outer (white Model)		Appelez-nous	-
13	4448854		Door Handle (black Model)				$ 74.07
13	4448855		Door Handle (white Model)		Appelez-nous	-
14	4450813		Bracket, Handle				$ 24.20
14	W10276642		Screw   (Replaces: 4451040)				$ 5.49
18	W11688413		Insulation, Sides   (Replaces: 4448707)				$ 23.08
19	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
19	4450362		Shield, Heat		Appelez-nous	-
20	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
20	4450423		Retainer, Glass		Appelez-nous	-
21	4450837		Seal, Door Top		Appelez-nous	-
22	4450838		Seal, Side		Appelez-nous	-
23	4450863		Retainer, Clip (black Model)		Appelez-nous	-
23	4450864		Retainer, Clip (white Model)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
