SELECT A DIAGRAM

01 - Oven


02 - Oven Door


03 - Internal Oven


04 - Control Panel, Literature

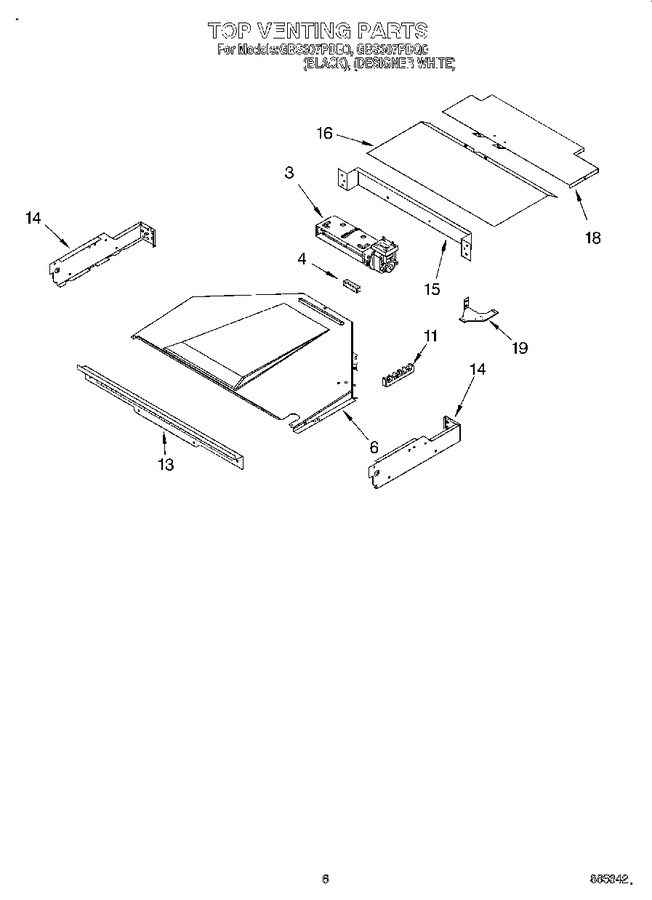

05 - Top Venting, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	4450920		Blower, Upper/lower		Appelez-nous	-
4	3182384		Block, Foam		Appelez-nous	-
6	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
6	4450367		Exhaust Duct		Appelez-nous	-
11	WP3387230		Screw   (Replaces: 3196181)			Immediately	$ 7.69
11	WP8203546		Block, Terminal   (Replaces: 4449868)			Immediately	$ 27.12
13	WP4450038		Screw   (Replaces: 4450038)				$ 6.84
13	4448549		Vent, Control Panel		Appelez-nous	-
14	WP4449809		Side, Control Top (screw)   (Replaces: 4449809)			Immediately	$ 6.47
14	W10755214		Side, Control Top (right)   (Replaces: 4448371)		Appelez-nous	-
14	W10790240		Side, Control Top (left)   (Replaces: 4448372)				$ 67.21
15	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
15	4450658		Back, Control		Appelez-nous	-
16	4450551		Cover, Top Rear		Appelez-nous	-
16	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
18	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
18	WP4452367		Cover, Top Front   (Replaces: 4450554)				$ 68.53
19	WP4448950		Screw, Install (4)   (Replaces: 4448950)				$ 6.80
19	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
19	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
19	4450800		Screw, Ground				$ 11.55
19	814381		Pin Hinge Kit				$ 7.73
19	814387		Roll Tape, Exhaust Duct		Appelez-nous	-
19	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
19	4450545		Bracket, Blower		Appelez-nous	-
19	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
19	WP261869		Paint, Touch-up (1/2oz.) (cord Brown)   (Replaces: 261869)				$ 23.85
19	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
19	261900		Citrine White				$ 51.34
19	285006		Spray Paint (black) 13 Oz.   (Replaces: 830864)			Immediately	$ 51.34
19	591014		Adhesive Loctite (1/3 Oz.)		Appelez-nous	-
19	WP482338		Sealer, Silastic (3 Oz.)   (Replaces: 482338)			Immediately	$ 57.16
19	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
19	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
19	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
19	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
19	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
19	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
19	242829		Wire (12 Ga. 150 C Red)		Appelez-nous	-
19	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
19	242831		Wire (14 Ga. 200 C Red)				$ 342.23
19	242826		Wire (14 Ga. 150 C White)		Appelez-nous	-
19	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
19	242832		Wire (14 Ga. 200 C Yellow)		Appelez-nous	-
19	4454871		Harness, Wire (door Switch)		Appelez-nous	-
19	4454709		Harness, Wire (latch)		Appelez-nous	-
19	4454857		Harness, Wire (main)		Appelez-nous	-
19	WP4450952		Conduit   (Replaces: 4450952)				$ 206.55
19	4448664		Clamp				$ 18.35
19	WP112432		Nut   (Replaces: 112432)				$ 7.16

    View Diagram in Separate Window       Print Part List
