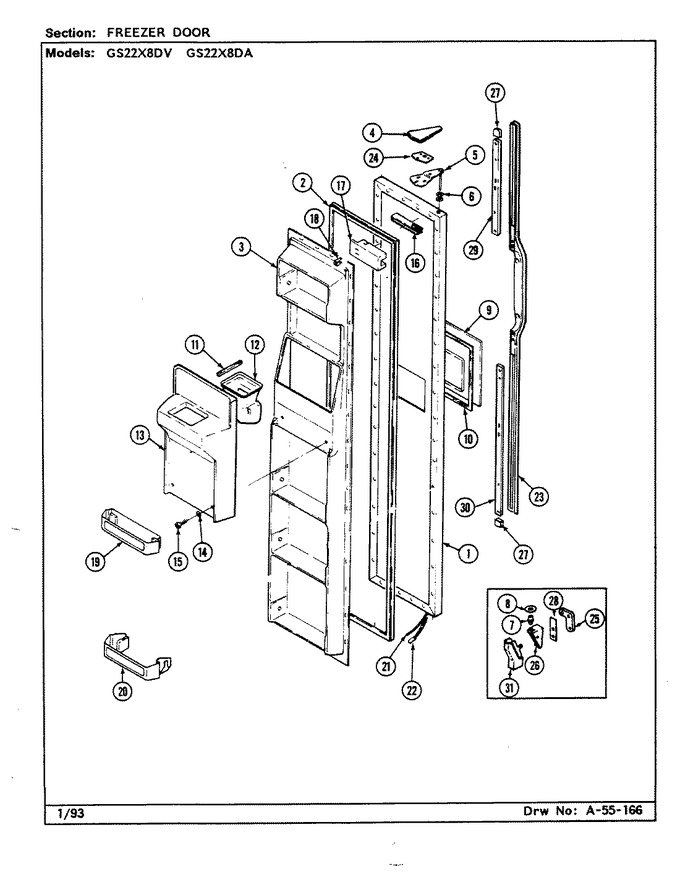

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 72346-28-AM | Panel, Frz. Door (alm) | 13 |
|
- | ||||
| 2 | 70024-1 | Gasket | 13 |
|
- | ||||
| 3 | 68785-6 | Insert, Food Storage | 13 |
|
- | ||||
| 3 | 65275-5 | Screw | 13 |
|
- | ||||
| 3 | 69253-1 | Liner, Frz. Door | 13 |
|
- | ||||
| 4 | 70121-3 | Cover, Upper Hinge (alm) | 13 |
|
- | ||||
| 5 | WP3-24838-048 | Screw (Replaces: 65275-52) | 13 |
|
$ 7.00 | ||||
| 5 | 53709-16 | Upper Hinge,(chrome) | 13 |
|
- | ||||
| 6 | WP52185-1 | Washer (Replaces: 52185-1) | 13 |
|
Immediately | $ 9.47 | |||
| 7 | 69845-1 | Pin, Lower Hinge | 13 |
|
$ 44.55 | ||||
| 8 | 67483-3 | Washer, Door Spacer | 13 |
|
Immediately | $ 45.86 | |||
| 9 | 68594-6 | Escutcheon (alm) | 13 |
|
- | ||||
| 10 | 95121-1 | Tape, Escutcheon | 13 |
|
- | ||||
| 11 | 52077-26 | Seal | 13 |
|
- | ||||
| 12 | 69220-1 | Chute, Ice | 13 |
|
- | ||||
| 13 | 68768-1 | Insulation | 13 |
|
- | ||||
| 13 | 69223-1 | Panel, Access | 13 |
|
- | ||||
| 13 | 68772-1 | Insulation | 13 |
|
- | ||||
| 14 | 68786-2 | Stud | 13 |
|
- | ||||
| 15 | W11772394 | Screw (Replaces: 400021-103) | 13 |
|
Immediately | $ 10.94 | |||
| 16 | 69258-1 | Closer, Door | 13 |
|
- | ||||
| 16 | WP489478 | Screw (Replaces: 400017-1) | 13 |
|
$ 6.98 | ||||
| 17 | 52613-1 | Insulation, Closer | 13 |
|
- | ||||
| 18 | 69261-1 | Bracket, Closer | 13 |
|
- | ||||
| 19 | 69873-7 | Shelf, Pick-off | 13 |
|
- | ||||
| 20 | 69870-7 | Front, Pick-off | 13 |
|
- | ||||
| 21 | WPW10426709 | Tubing Plastic-door Panel (Replaces: 67187-1) | 13 |
|
$ 126.83 | ||||
| 22 | 69865-5 | Wire Harness, Door | 13 |
|
- | ||||
| 23 | 12000043 | Kit, Handle Assy (almond) | 13 |
|
- | ||||
| 24 | 65031-1 | Shim, Upper Hinge | 13 |
|
- | ||||
| 25 | 65275-59 | Screw | 13 |
|
- | ||||
| 25 | 67874-1 | Tapping Plate, Lower Hinge | 13 |
|
- | ||||
| 26 | 65275-51 | Screw, Lower Hinge | 13 |
|
- | ||||
| 26 | 69516-1 | Hinge, Lower (blk) | 13 |
|
- | ||||
| 27 | 69590-1 | End Cap, Handle | 13 |
|
- | ||||
| 28 | 69510-1 | Shim, Lower Hinge | 13 |
|
- | ||||
| 28 | 69759-2 | Organizer | 13 |
|
- | ||||
| 29 | 69586-1 | Trim, Handle | 13 |
|
- | ||||
| 30 | 69586-2 | Trim, Handle | 13 |
|
- | ||||
| 31 | 65275-47 | Screw, Hinge Cover (black) | 13 |
|
- | ||||
| 31 | 68978-1 | Cover, Lower Hinge (blk) | 13 |
|
- |
