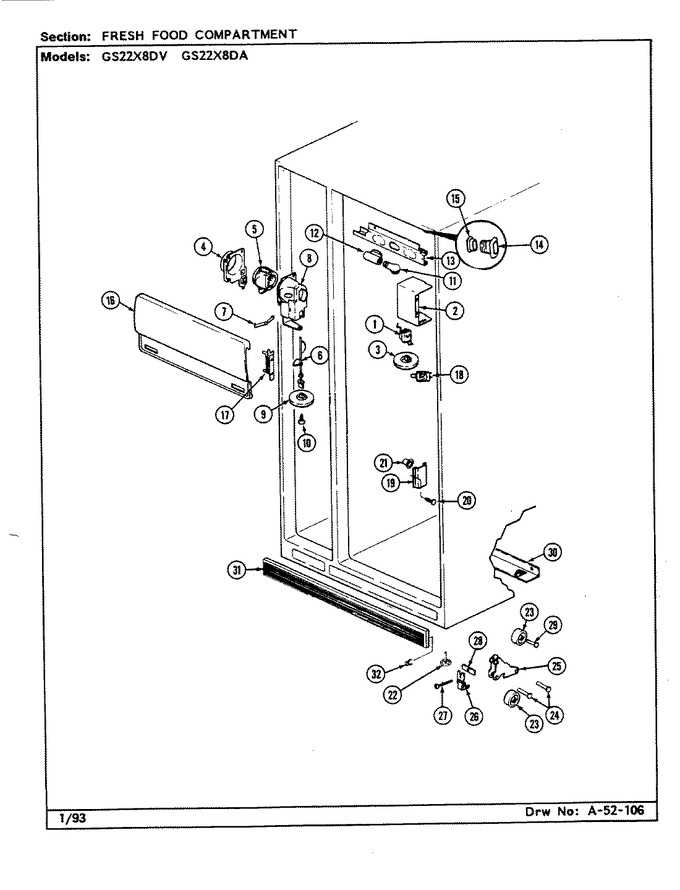

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP61001673 | Control, Temperature (Replaces: 69694-3) | 13 |
|
Immediately | $ 144.29 | |||
| 1 | 401012-1 | Screw, Control Mounting | 13 |
|
- | ||||
| 1 | 67692-1 | Insulation, Control | 13 |
|
- | ||||
| 2 | WP489478 | Screw (Replaces: 400017-1) | 13 |
|
$ 6.98 | ||||
| 2 | 67126-1 | Housing, Temperature Control | 13 |
|
- | ||||
| 3 | 29893-7 | Knob, Temp. Control | 13 |
|
- | ||||
| 4 | 67351-1 | Orifice, Frz. Control (inlet) | 13 |
|
- | ||||
| 5 | 58767-1 | Insulation, Housing | 13 |
|
- | ||||
| 6 | 67609-1 | Damper, Frz. Control | 13 |
|
- | ||||
| 7 | 52648-1 | Spring, Baffle | 13 |
|
- | ||||
| 8 | 400027-1 | Screw | 13 |
|
- | ||||
| 8 | 67354-1 | Housing, Frz. Control | 13 |
|
- | ||||
| 9 | 29893-12 | Knob | 13 |
|
- | ||||
| 10 | 400001-1 | Screw | 13 |
|
- | ||||
| 11 | W11679940 | Bulb, Light (Replaces: 31956-1) | 13 |
|
Immediately | $ 10.17 | |||
| 12 | 68974-3 | Receptacle, Bulb | 13 |
|
- | ||||
| 13 | 69081-2 | Housing | 13 |
|
- | ||||
| 13 | WP489478 | Screw (Replaces: 400017-1) | 13 |
|
$ 6.98 | ||||
| 14 | 57410-1 | Tunnel | 13 |
|
- | ||||
| 15 | 57411-1 | Retainer | 13 |
|
- | ||||
| 16 | 69194-2 | Shield, Light Ref | 13 |
|
- | ||||
| 17 | WP489478 | Screw (Replaces: 400017-1) | 13 |
|
$ 6.98 | ||||
| 17 | 69836-1 | Insert, Light Shield | 13 |
|
- | ||||
| 17 | 67125-1 | Support, Light Shield | 13 |
|
- | ||||
| 18 | W11384469 | Switch, Light (Replaces: 66987-1) | 13 |
|
Immediately | $ 33.51 | |||
| 19 | 62128-1 | Air Deflector | 13 |
|
- | ||||
| 20 | 28013-2 | Rivet, Air Tunnel | 13 |
|
- | ||||
| 21 | 67684-1 | Tunnel, Air Return | 13 |
|
- | ||||
| 22 | W11117769 | Leg, Leveling (Replaces: 68664-1) | 13 |
|
Immediately | $ 16.61 | |||
| 23 | 62830-7 | Wheel Assy. | 13 |
|
- | ||||
| 24 | 64965-1 | Pin, Wheel | 13 |
|
- | ||||
| 25 | WP489478 | Screw (Replaces: 400017-1) | 13 |
|
$ 6.98 | ||||
| 25 | 62794-1 | Bracket, Wheel | 13 |
|
- | ||||
| 26 | 67280-1 | Faceplate, Bracket | 13 |
|
- | ||||
| 27 | 56487-2 | Screw, Wheel Adjustment | 13 |
|
- | ||||
| 28 | 59101-1 | Tapping Plate, Wheel | 13 |
|
- | ||||
| 29 | 64965-3 | Pin, Wheel (rear) | 13 |
|
- | ||||
| 30 | 67255-2 | Support Rail Rear | 13 |
|
- | ||||
| 30 | 3400518 | Screw (Replaces: 65275-42) | 13 |
|
$ 11.68 | ||||
| 31 | 68981-2 | Kickplate (blk) | 13 |
|
- | ||||
| 32 | WP489478 | Screw (Replaces: 400017-1) | 13 |
|
$ 6.98 | ||||
| 32 | 60100-1 | Clip, Kickplate | 13 |
|
$ 5.85 |
