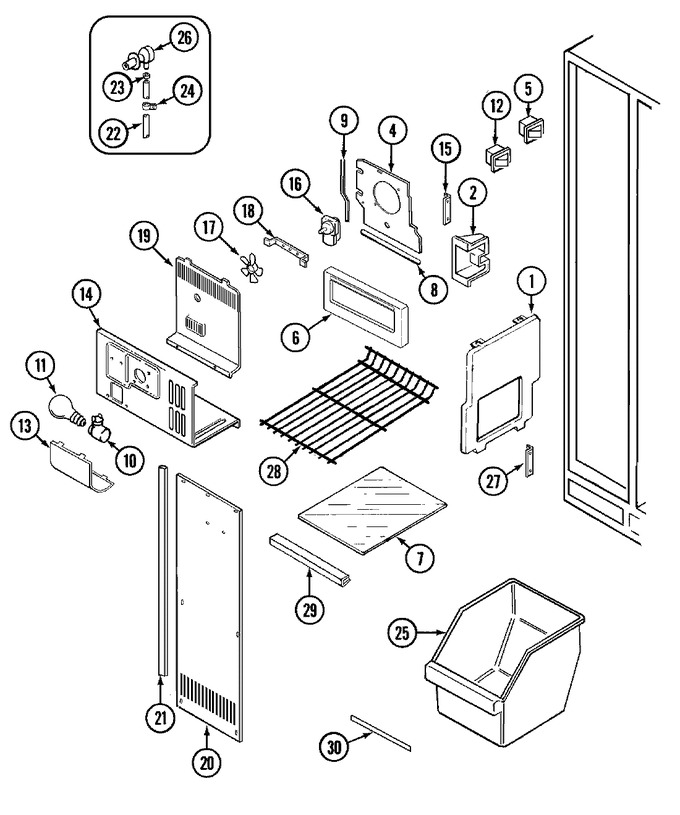

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Freezer Compartment
02 - Fresh Food Compartment
03 - Ice & Water Dispenser
04 - Ice Maker & Bin
05 - Shelves & Accessories
06 - Unit Compartment & System
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 69874-1 | Insert, Ice Door | 11 |
|
- | ||||
| 1 | 68629-1 | Divider Shelf | 11 |
|
- | ||||
| 2 | 53837-1 | Shield | 11 |
|
- | ||||
| 3 | 68621-1 | Spacer | 11 |
|
- | ||||
| 3 | W11772394 | Screw (Replaces: 400021-1) | 11 |
|
Immediately | $ 10.94 | |||
| 4 | 67297-6 | Cover, Coil Upper | 11 |
|
- | ||||
| 5 | W11384469 | Switch, Light (Replaces: 66987-1) | 11 |
|
Immediately | $ 33.51 | |||
| 6 | 60313-1 | Cup, Shelf | 11 |
|
- | ||||
| 6 | 68620-1 | Door, Access | 11 |
|
- | ||||
| 7 | 68139-25 | Shelf | 11 |
|
- | ||||
| 8 | 66325-14 | Seal, Foam Tray | 11 |
|
- | ||||
| 9 | 420092-900 | Washer, Spring | 11 |
|
- | ||||
| 9 | 66325-33 | Seal | 11 |
|
- | ||||
| 10 | 68610-2 | Baffle, Freezer Control | 11 |
|
- | ||||
| 10 | 67345-3 | Support, Light Shield | 11 |
|
- | ||||
| 10 | 29814-2 | Receptacle, Light | 11 |
|
- | ||||
| 11 | WP67002552 | Bulb, Light (40w-230v) (Replaces: 24082-1) | 11 |
|
Immediately | $ 10.58 | |||
| 12 | 68058-1 | Switch, Interlock | 11 |
|
- | ||||
| 13 | 67292-1 | Shield, Light | 11 |
|
- | ||||
| 14 | 400015-12 | Screw | 11 |
|
- | ||||
| 14 | 67296-2 | Box, Auger Motor | 11 |
|
- | ||||
| 15 | 54531-10 | Grommet | 11 |
|
- | ||||
| 15 | 67288-1 | Bracket, Mounting | 11 |
|
- | ||||
| 15 | 67685-1 | Retainer | 11 |
|
- | ||||
| 15 | 26911-25 | Hose, Drain | 11 |
|
- | ||||
| 16 | 69593-1 | Wire Harness, Frz. Adapter | 11 |
|
- | ||||
| 16 | 69298-2 | Motor, Fan | 11 |
|
- | ||||
| 17 | 22715-6 | Rivet | 11 |
|
- | ||||
| 17 | 52120-4 | Blade, Evaporator Fan | 11 |
|
- | ||||
| 18 | 64856-1 | Bracket, Fan Motor | 11 |
|
- | ||||
| 18 | WP488729 | Screw (Replaces: 9986-45) | 11 |
|
Immediately | $ 7.01 | |||
| 19 | 67225-3 | Shield, Fan | 11 |
|
- | ||||
| 19 | 66325-22 | Seal,fan Shield | 11 |
|
- | ||||
| 20 | 67335-3 | Cover, Coil Lower | 11 |
|
- | ||||
| 21 | 400015-12 | Screw | 11 |
|
- | ||||
| 21 | 67562-1 | Coil Cover, Gasket | 11 |
|
- | ||||
| 22 | WPB5705307 | Tubing, Valve To Grommet (Replaces: 67579-2) | 11 |
|
$ 11.19 | ||||
| 23 | WPM0114003 | Clamp, Spring (Replaces: 60333-4) | 11 |
|
$ 9.95 | ||||
| 24 | 65517-1 | Clip | 11 |
|
- | ||||
| 25 | 66636-109 | Drawer, Frz. | 11 |
|
- | ||||
| 26 | 69219-1 | Grommet | 11 |
|
- | ||||
| 27 | 68572-1 | Latch | 11 |
|
- | ||||
| 28 | 68630-6 | Shelf, Dispenser | 11 |
|
- | ||||
| 28 | 67466-1 | Cup, Shelf | 11 |
|
- | ||||
| 29 | 52014-139 | Trim | 11 |
|
- | ||||
| 29 | 68124-80 | Insert, Crisper Pan | 11 |
|
- | ||||
| 30 | 65561-116 | Trim, Shelf | 11 |
|
- |
