01 - Freezer Compartment
02 - Fresh Food Compartment
03 - Ice & Water Dispenser
04 - Ice Maker & Bin
05 - Shelves & Accessories
06 - Unit Compartment & System
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

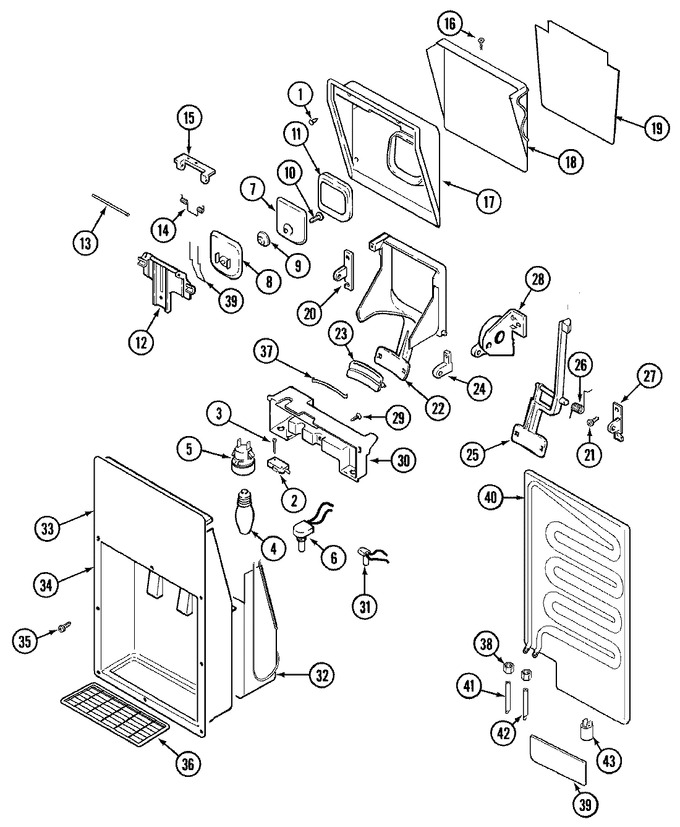

| 1 | 28272-6 | Bumper, Door | 11 |
|
- | ||||
| 2 | 55440-2 | Switch, Ice & Water | 11 |
|
$ 11.94 | ||||
| 3 | 405071-1 | Screw | 11 |
|
- | ||||
| 4 | 63179-3 | Bulb, Light | 11 |
|
- | ||||
| 5 | 67293-1 | Socket, Light (w/nut) | 11 |
|
- | ||||
| 6 | 27116-2 | Wire Nut | 11 |
|
- | ||||
| 6 | 68491-1 | Wire Harness, Switch | 11 |
|
- | ||||
| 6 | 67340-3 | Switch, Lockout | 11 |
|
- | ||||
| 7 | 68557-1 | Insulation, Ice Door | 11 |
|
- | ||||
| 8 | 68565-1 | Door, Ice | 11 |
|
- | ||||
| 9 | 68566-1 | Retainer | 11 |
|
- | ||||
| 10 | 405116-103 | Screw | 11 |
|
- | ||||
| 11 | 68560-2 | Seal | 11 |
|
- | ||||
| 12 | 68563-1 | Strike, Door | 11 |
|
- | ||||
| 13 | 68564-1 | Shaft | 11 |
|
- | ||||
| 14 | 68765-1 | Spring | 11 |
|
- | ||||
| 15 | 68562-1 | Bracket | 11 |
|
- | ||||
| 16 | 405024-103 | Screw | 11 |
|
- | ||||
| 17 | WP1163283 | Screw (Replaces: 405025-103) | 11 |
|
$ 6.47 | ||||
| 17 | 68567-2 | Back, Fountain (wht) | 11 |
|
- | ||||
| 18 | 68936-2 | Heater, Fountain | 11 |
|
- | ||||
| 19 | 68714-1 | Insulation, Foil | 11 |
|
- | ||||
| 20 | 68627-1 | Pivot, Actuator (lt) | 11 |
|
- | ||||
| 21 | 405024-103 | Screw | 11 |
|
- | ||||
| 22 | 69112-2 | Paddle, Ice (wht) | 11 |
|
- | ||||
| 23 | 69174-2 | Pad, Paddle (wht) | 11 |
|
- | ||||
| 24 | 68764-1 | Pivot, Actuator (center) | 11 |
|
- | ||||
| 25 | 68558-2 | Paddle, Water (wht) | 11 |
|
- | ||||
| 26 | 68767-1 | Spring, Paddle Return | 11 |
|
- | ||||
| 27 | 68628-1 | Pivot, Actuator (rt)---na | 11 |
|
- | ||||
| 28 | WP1163283 | Screw (Replaces: 405025-103) | 11 |
|
$ 6.47 | ||||
| 28 | 68827-1 | Motor, Inertia | 11 |
|
- | ||||
| 29 | WP1163283 | Screw (Replaces: 405025-103) | 11 |
|
$ 6.47 | ||||
| 30 | 68626-1 | Bracket | 11 |
|
- | ||||
| 31 | 68568-1 | Plunger | 11 |
|
- | ||||
| 32 | 69132-1 | Heater, Fountain Back | 11 |
|
- | ||||
| 33 | 68625-1 | Fountain Front | 11 |
|
- | ||||
| 34 | 68954-2 | Fountain (wht) | 11 |
|
- | ||||
| 35 | WP1163283 | Screw (Replaces: 405025-103) | 11 |
|
$ 6.47 | ||||
| 36 | 68631-1 | Grill | 11 |
|
- | ||||
| 37 | 68763-1 | Trim, Paddle Pad | 11 |
|
$ 5.04 | ||||
| 38 | WP627018 | Nut, Compression (1/4``) (Replaces: 55419-1) | 11 |
|
$ 9.87 | ||||
| 39 | 68522-1 | Cover, Water Line Conn. | 11 |
|
- | ||||
| 39 | 59135-1 | Clamp, Tank Tubing | 11 |
|
- | ||||
| 40 | 400048-28 | Screw | 11 |
|
- | ||||
| 40 | WP627018 | Nut, Compression (1/4``) (Replaces: 55419-1) | 11 |
|
$ 9.87 | ||||
| 40 | 55604-1 | Nut, Compression (5/16``) | 11 |
|
- | ||||
| 40 | 29356-1 | Retainer, Nameplate | 11 |
|
- | ||||
| 40 | 69065-8 | Tank, Water | 11 |
|
- | ||||
| 40 | WP4373559 | Union, Reducing (Replaces: 67612-1) | 11 |
|
$ 69.62 | ||||
| 41 | WPB5705307 | Tubing (Replaces: 67579-15) | 11 |
|
$ 11.19 | ||||
| 42 | WPB5705307 | Tubing, Valve To Grommet (Replaces: 67579-2) | 11 |
|
$ 11.19 | ||||
| 43 | 19530-36 | Nylon Nut | 11 |
|
- |
