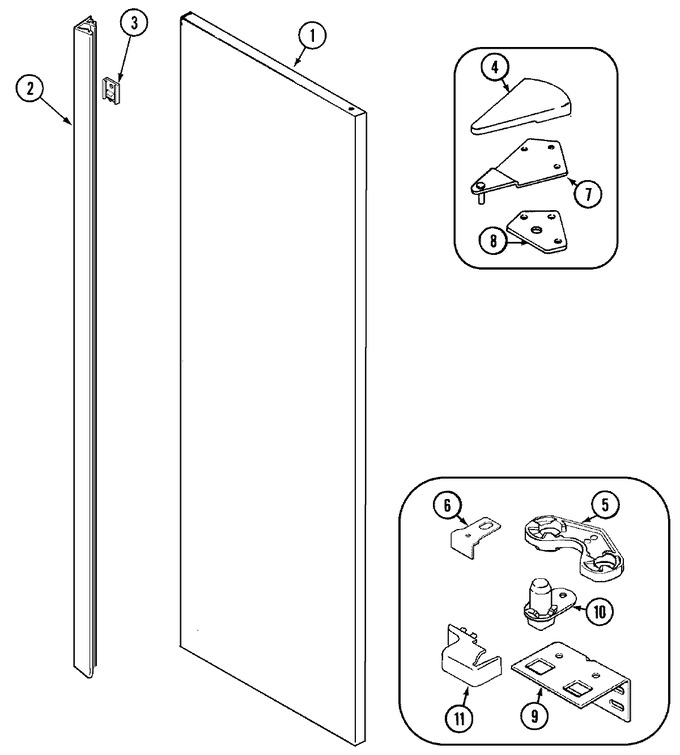

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	61004260		Panel, F.f. Door (stnls)	11	Appelez-nous	-
1	61005815		Panel, F.f. Door (stnls)	18	Appelez-nous	-
2	61004393		Screw (stnls)	11	Appelez-nous	-
2	61004258		Handle, Door (stnls)	11	Appelez-nous	-
3	61004179		Base, Handle	11			$ 5.02
3	W10856122		Screw   (Replaces: 61002180)	11			$ 6.98
4	61004868		Cover, Upper Hinge (slv)	11	Appelez-nous	-
5	61003647		Closer, Door (natural)	11			$ 10.19
5	W10856122		Screw   (Replaces: 61002180)	11			$ 6.98
6	61003273		Stop, Door	11	Appelez-nous	-
6	W10856122		Screw   (Replaces: 61002180)	11			$ 6.98
7	WP3-24838-048		Screw, Upper Hinge   (Replaces: 65275-86)	11			$ 7.00
7	61001971		Hinge, Upper	11	Appelez-nous	-
8	61001922		Shim, Upper Hinge	11			$ 0.71
9	3400112		Screw   (Replaces: 61003128)	11			$ 62.96
9	61002361		Hinge, Lower (blk)	11			$ 74.20
10	61003174		Pin, Lower Hinge	11			$ 6.22
11	61003537		Cover, Lower Hinge (blk)	11	Appelez-nous	-
